Product Description

Detail Information
Material:	All In Steel Structure With Spray Coated	Outer Size:	620520820mm
Inner Size:	480480450mm	Application:	Class 100 Lab / Laboratory Clean Room
Air Flow:	Downflow	Hepa Filter:	99.999% Efficiency At 0.3um
Light:	10 W , And 10 W/1 Ultraoviolet Lamp	Weight:	About 48 Kgs
High Light:	Desktop Laminar Flow Clean Bench , Class 100 Laminar Flow Hood , Ultraviolet Lamps Laminar Flow Clean Bench

Product Description

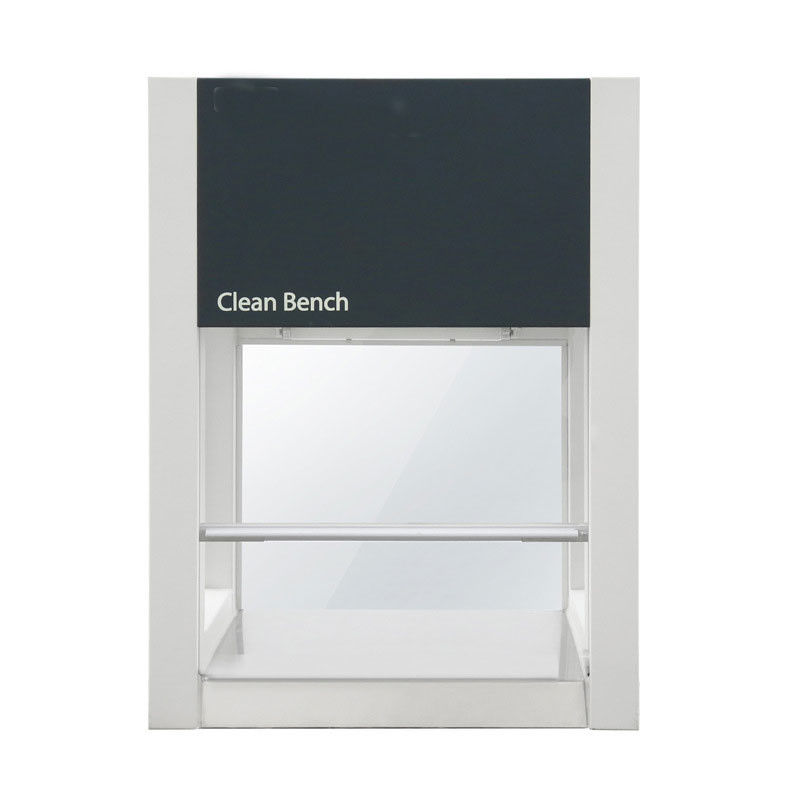

Class 100 Ultraviolet Lamps Desktop Laminar Flow Clean Bench Lab Operating

Laboratory operating table scientific research desktop laminar flow cabinet with ultraviolet lamps

Introduction:

All materials used in this lamianr flow cabinets hood/ work station are selected for durability and contamination control. Interior surfaces, including the side panels and work surface, are 304 stainless steel; on an optional basis, these components can be electropolished to provide an ultra-clean finish free of subsurface contaminants. The
exterior features a chip-resistant, powder-coated finish. The display panel, including the ON/OFF switch,
pressure gauge, and blower speed control, is mounted above the work area. For operational
convenience, a duplex 220VAC/50Hz power outlet is included on a standard basis.

Operating features:

1: Powerful filter/blower filter/fan modules provide a back-to-front laminar flow of filtered air across the work surface.

2: The adjustable multi-speed, direct-drive blower lets you adjust air speed to meet your requirements.

3: Horizontal air laminar flow cabinet/laboratory clean hood adopts wind volume adjustable fan system,

light-touch type switch and dual-speed voltage regulation device to keep wind speed in working area in ideal state.

4: Horizontal air laminar flow cabinet hood /laboratory clean hood adopts super thin type air filter which reduces static-pressure tank to the smallest size.

5: Horizontal air laminar flow cabinet hood / laboratory clean hood is the newest type bench in present market.

The front cover may be opened directly for exchanging filter.

6: American Dwyer pressure remind of you replace the ULPA Air filter in regular.

7: It also provides an industry-best low noise level of 50dBA.

Model	VD650	HD650	VD850	HD850
Inner Size	480480450	480450450	680470450	680450450
Outer Size	620520820	620520820	820520820	820520820
Suitable	sigle person single side
Air Filter Numbers	48046038*1		68046038*1
Cleanliness Level	class 100 purification,FED STD 209E.≤3.5 particles for 0.5um micro dust
Average Air Speed	0.25- 0.4 m/s adjutable
Power	AC/220V/50HZ
Noise	≤62dB(A)
Weight	about 48 kgs		about 65 kgs

Tag:

Product Details:
Place of Origin:	china
Brand Name:	alphaclean
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Polywood packing
Delivery Time:	10 days
Payment Terms:	L/C, T/T
Supply Ability:	100sets
