Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets |
|
Detail Information |
|||
| Material: | Coated Color Steel | Size: | 1640×740×1750 |
|---|---|---|---|
| Noise: | ≤58dba | Application: | Class 100 Lab / Laboratory Clean Room |
| Air Flow: | 0.45 - 0.75 M/s | Hepa Filter: | 99.999% Efficiency At 0.3um |
| High Light: | 58 dba Laminar Flow Clean Bench,HEPA Laminar Flow Clean Bench,58 dba Laminar Flow Cabinet |
||
Product Description

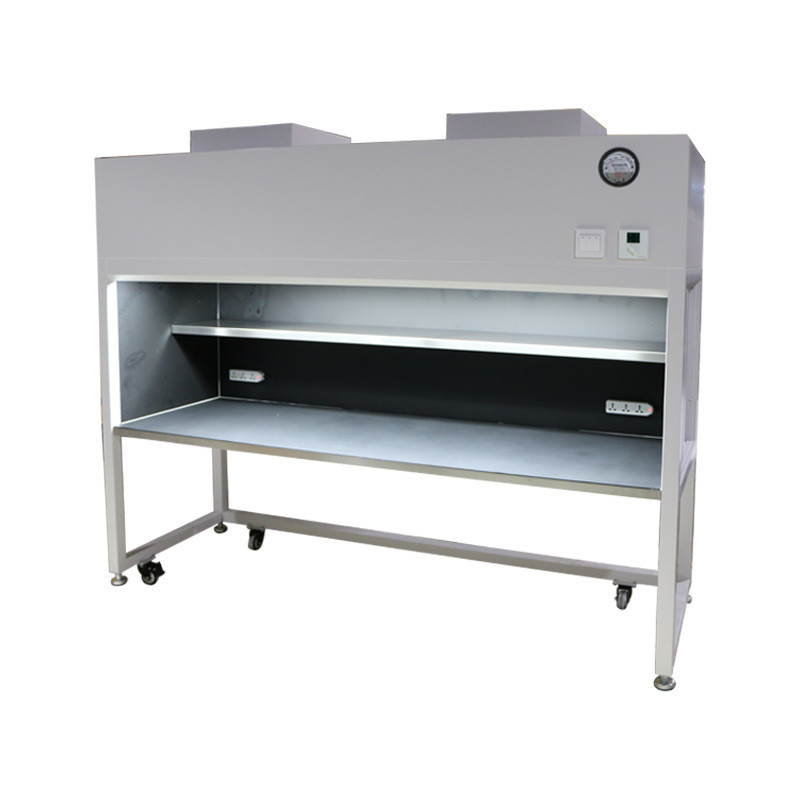

HEPA Air Down Air 58 Dba Laminar Flow Clean Bench Industrial Medial Lab
Industrial Medial Lab Vertical Down Air Laminar Flow Cabinet
1. Less vibration: The integration vertical clean bench adopts airflow forming principle of vertical unidirectional airflow, and combines the low noise centrifugal fan, the plenum chamber and the HEPA filter into a unit structure. Adopts high quality fan in low vibration.
2. Filter exchange intelligent reminder: Assembling manometer to indicate differential pressure, it can remind when to renewal the HEPA filter.
3. Low noise, maintenance free: Adopt adjustable air system which has little shock, stable, low noise, maintenance free and stable.
4. Rust and corrosion protection material: The cabinet is cold rolled steel with powder coated and the table-board is sand light stainless steel. Adopted glass baffle, LED show, electronic control board and touch switch in two sides.
Laminar Flow Cabinets Application:
Widely used in scientific research and production department which needs clean sterile working environment in local, such as medicine, bio-pharmaceutical, foodstuff, medical experiment, optics, electron, sterile laboratory, sterile microbial inspection, plant tissue culture etc.
Laminar Flow Cabinets Drawing
Technical Parameter
|
MODEL |
V-164 |
||
|
External size (mm) (WXDXH) |
1640x740 x 1750 mm |
||
|
Work zone (mm) (WXDXH) |
1560x700x700mm |
||
|
Purification rank |
FS209E 100Rank |
||
|
Rating airflow(m3/h) |
1800m3/h |
||
|
Filtration efficiency |
More than 99.99%@0.3um H13-H14 |
||
|
Average wind speed |
0.3-0.6m/s |
||
|
Intensity of illumination |
>300lx |
||
|
pressure gauge |
America Dwyer pressure watch 1 pcs |
||
|
UV Light |
1 pcs |
||
|
Fluorescent lamp |
30Wx1 |
||
|
Material (Option) |
1:Entirety Sus201/304. 2: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS301 |
||
|
Power |
450w |
||
|
Noise |
<65dB |
||
|
Power supply |
110v/ 60HZ 220V-240V AC 50HZ |
||
