Alpha Clean Air Technology Co.,Ltd

Dust Free FS209E ISO Class 100000 Clean Room Laminar Flow Systems

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: ISO clean room
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
  • Detail Information
  • Product Description

Detail Information

Clean Room Level: ISO 5 - 8 Standards: ISO 14644-1 CLEAN ROOM FS209E
Application: Pharma,electronics,lab ,food, Hospital Scope: Struture , HVAC , Electricity / Monitoring
Period: 1 - 4 Months Service: Field Installation , Commissioning And Training,engineer Are Able To Service Machinery Overseas
Warranty: 1 Year Document: Verification And Certification
Name: Clean Room Building Main Product: Air Conditioner, Panels, Air Filtration System
High Light:

FS209E ISO Clean Rooms

,

HVAC ISO Clean Rooms

,

ISO 14644 Class 100000 Clean Room

Product Description

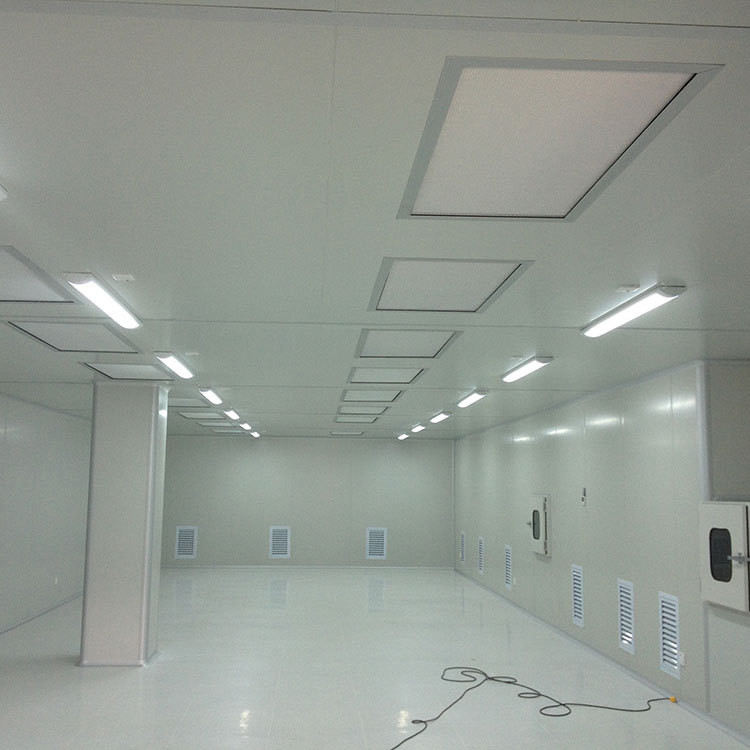

Dust Free FS209E ISO Class 100000 Clean Room Laminar Flow Systems



ISO 8 Class 100000 Clean Room Projects



Cleanliness Standards Level Comparison

USA Federal FS209E and ISO 14644

ISO14644-1 FED STD 209E CLASS Number of Particles Per Cubic Meter by Micrometer Size
ISO Class English Metric 0.1um 0.2um 0.3um 0.5um 0.5um 5um
        m3 m3 m3 ft3 m3
1     ISO1 10 2
2     ISO2 100 26 10   4
3 1 M1.5 1SO3 1,000 265 106   35
4 10 M2.5 ISO4 10,000 2,650 1,060 10 353
5(百级) 100 M3.5 ISO5 100,000 26,500 10,600 100 3,530 29
6(千级) 1,000 M4.5 ISO6 1,000,000 265,000 106,000 1000 35,300 293
7(万级) 10,000 M5.5 ISO7       10000 353,000 2,930
8(十万级) 100,000 M6.5 ISO8       100000 3,530,000 29,300
9     ISO9       1000000 35,300,000 293,000

































The dust-free workshop project is mainly composed of the following systems: air filtration system, environmental monitoring system, fire alarm system, people flow system, process piping system, power system, lighting system, maintenance structure and electrostatic ground treatment systems. The air-conditioning purification system project includes the entire equipment, equipment matching and construction installation.



General Class Level
Air exchange times
Relative Static Pressure
New Air Percentage
Class 1000
50-60
>10Pa
10-30%
Class 10000
15-25
>10Pa
Class 100000
10-15
>10Pa



The 100,000-class dust-free workshop standard is based on "the number of dust particles with a diameter greater than or equal to 0.5um per cubic meter of air" as a measure of its cleanliness. "Class 100,000 dust-free workshop" means that the number of dust particles with a diameter greater than or equal to 0.5um in each cubic of air is less than 100,000.



we offer cleanrooms compliant with FS209E levels 100 - 100,000 and ISO 14644 levels 5 - 8. Our services range from consultation, design, manufacture, installation, and any combination thereof. We also offer cleanroom equipment and accessories.

Dust Free FS209E ISO Class 100000 Clean Room Laminar Flow Systems 0
