DIN75200 Fire Retardant Antioxidant Aluminum Stacking Doors

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: CE, ISO
Model Number: ST001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $1,000.00 negotiation
Packaging Details: wooden pallet packing
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Product: High Speed Automatic Stacking Door Curtain Thickness:: 0.8/1.5mm
Curtain Material: PVC Coated Fabric Motor:: SEW Or SEJ
Running Speed:: 0.7~1.2m/s Size:: To Your Order
Open Style:: Automatic Color:: Red/Yellow/Blue/Green/White/Grey/Orange
High Light:

Antioxidant Aluminum Stacking Doors


DIN75200 Aluminum Stacking Doors


DIN75200 Stack Up Doors

Product Description

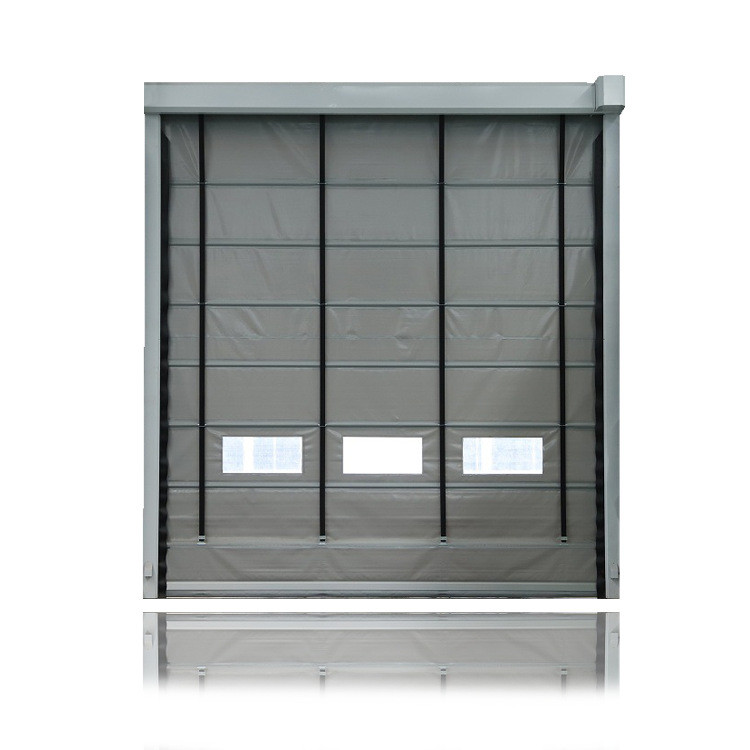

Stacking Up Fast Door


Stacking doors have high-strength antioxidant aluminum reinforced ribs and good-shaped curtain with wind bars, its wind resistance is higher than high-speed doors.


Main box cover and track Made of high strength aluminum alloy that is treated by oxidation, both beautiful and durable
Door Curtain

The curtain material is a high-density industrial coating base fabric, made in France (0.8mm thick),

the colors are blue, yellow, white, etc. The technical parameters are:

Tensile strength: (warp/weft) 4000/3500N

Tear strength: (warp and weft) 600/600N,

the operating temperature is between -30℃ and +70℃.

Fire rating: German standard DIN75200. Fire-retardant, self-resting from fire.

Removable windproof aluminum alloy rib makes the curtain replacement more convenient;

Transparent window

Low-temperature resistance and anti-aging PVC see-through window,

operating temperature -40℃ to +70℃,

position above 1.2-1.5m,

increase safety performance, management performance and daylighting rate.

Safety performance Infrared security: photoelectric protection systems are equipped on both sides of the door frame to prevent the rolling door from falling and hitting pedestrians or vehicles
Sealing performance An elastic PVC base cloth is installed at the bottom end, which can be tightly combined with various uneven grounds. The interior is filled with cushioning materials to improve its durability. Both sides of the doorpost are equipped with high sealing performance brushes, which can reduce noise and increase sealing effect
Power performance

SEJ special motor for fast rolling doors.

   1. Power: 1.5KW Choose the required model according to the size of the door.

  2. Voltage: 220V and stable performance.

  3. Rotation speed: 1500 rpm, F: IP55, which can meet the requirements of high-frequency opening.

  4. Advantages: S4 type bearing large load, the latest generation of reduction gears, high efficiency, energy saving, and low noise.

Allowable frequency

120 times/hour, 2 times/minute.

Wind resistance coefficient:

roller-type high-speed automatic rolling door 12KG/M,

strap-stacked high-speed automatic rolling door 60KG/M

Option parts Infrared security system, geomagnetic induction system, radar induction system, remote control switch, window, airbag, frequency conversion control system, multi-door linkage control system, anti-collision barrier, rope switch, signal light
