Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 900*2100mm |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Product Name: | Clean Room Airtight Door | Door Material: | Steel |
|---|---|---|---|
| Application: | Hospital ,clean Rooms | Thickness: | 50 Mm |
| Length: | 6000 Mm | Surface Treatment: | Powder Coated Smooth Finished |
| High Light: | 1200mm Cleanroom Door,Width 1200mm Clean Room Doors,lenth 6000mm Airtight Door |
||
Product Description

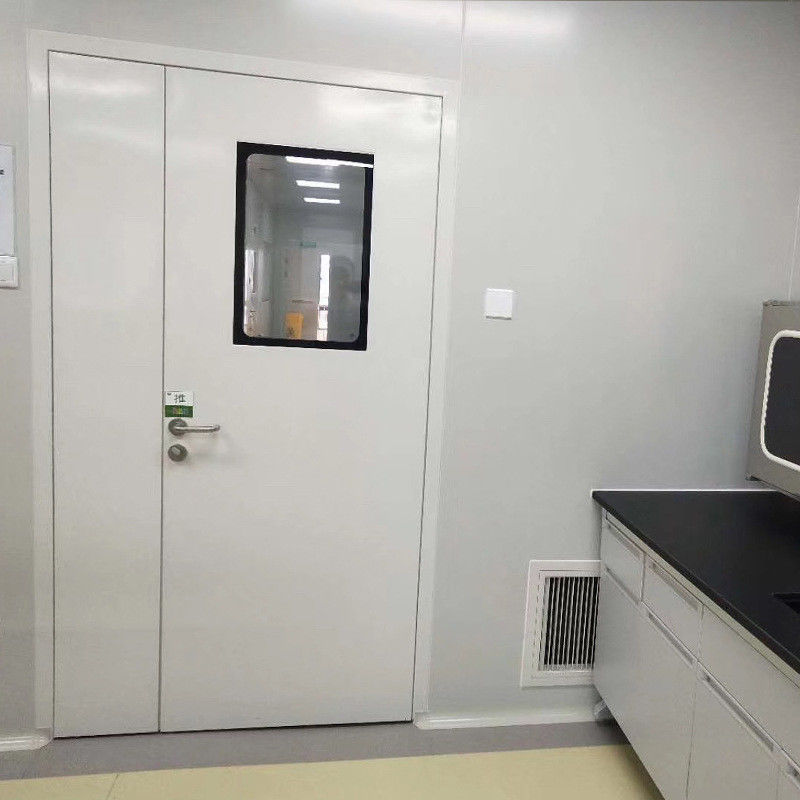

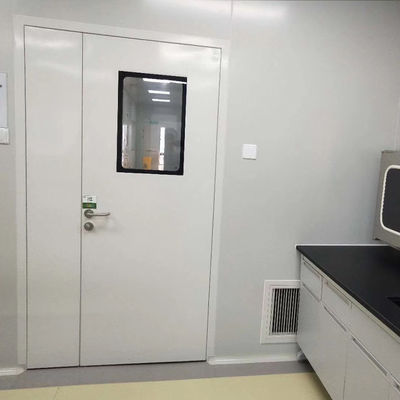

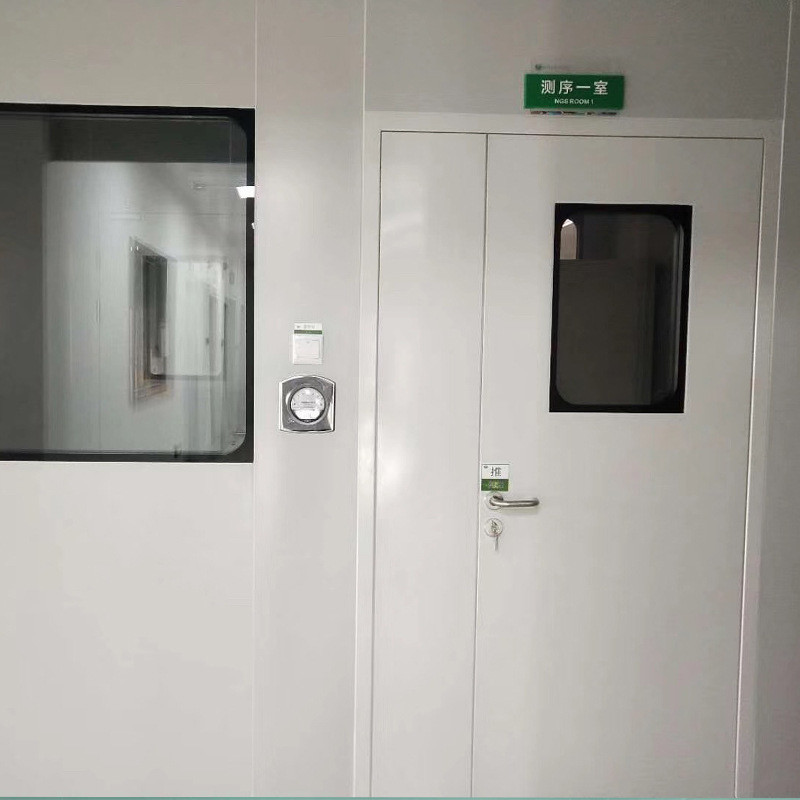

Double Glazed Toughened Glass View Window Airtight Cleanroom Door
Aluminum Frame Airtight Door for Clean Room Use with Silicone Rubber Sealing Strip
Construction: Aluminum frame: 1.2mm, Sandblasting and Oxidation treatment
Door leaf: 0.5mm Sandwich panel and Melamine resin board Size recommended:
900x2100mm(Single), 1200x2100mm(Unequal), 1500x2100mm(Double)
Bumper pad configuration (magnetic door)
Seamless and adjustable hinges
Automatic sealing up and down door
Available in antimicrobial coating and anti VIP coating
Features
50mm thick door frame to keep flush with our sandwich wall panel, no dust collection and easy cleaning. Our cleanroom door can fit in with with brick wall.
All edges of the door are sealed with silicone rubber sealing strip, Equipped with drop down bottom seal to ensure the air tightness
All doors with double-glazed toughened glass as view windows
Application: Cleanrooms for pharmaceuticals, micro-electronics, lab, hospitals, etc.
| Door type | Powder-coated steel door | ||
| Door leaf | Powder coated steel 1.0mm thickness | ||
| Door frame | Powder coated steel 1.2mm thickness | ||
| Color | light blue, white, grey, beige, etc | ||
| Dimension W*H(mm) | Single door | Double door | Unequal door |
| 700 /800 /900 * 2100 | 1200 /1500 /1800 * 2100 | (900*300) * 2100 | |
| Infill material | Paper/aluminum honeycomb , rockwool | ||
| View window | double-glazed toughened glass round or right-angle , right angled outside and round inside |
||
| Door lock | Stainless steel handle lock | ||
| hinge | Stainless steel | ||
| Bottom seal | Drop down bottom seal | ||
| Optional | Door closer ,interlock device,access control |
||
