Height 5500mm Roll Up Freezer Door with Galvanized steel frame

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: CE, ISO
Model Number: FZ001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Bubble film pack in wooden case
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Name: Thermal Insulated Freezor Room Roll Up Door Size: Max Width 4000mm Height 5500 Mm
Door Material: Zipper Design Fabric Curtain Frame And Cover: Galvanized Steel,surface Is Painted.or SUS 304
Revolving Encoder: TOFI Working Temperature: -25℃ To 60℃
Opening Life: 50000 Cycles
High Light:

Height 5500mm Freezer Door


Galvanized Steel Frame Freezer Door


Height 5500mm Cooler Doors

Product Description

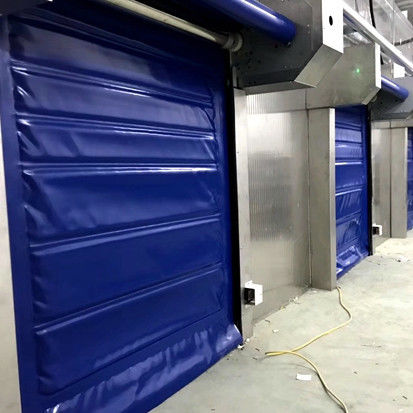

High Speed Roll Up Freezer Door


High speed roll up freezer doors are one type of high-speed doors with insulated material in between PVC cloth, which is usually applied to food factory. We use imported PVC material to enhance the door's durability as well as to help clients save costs.

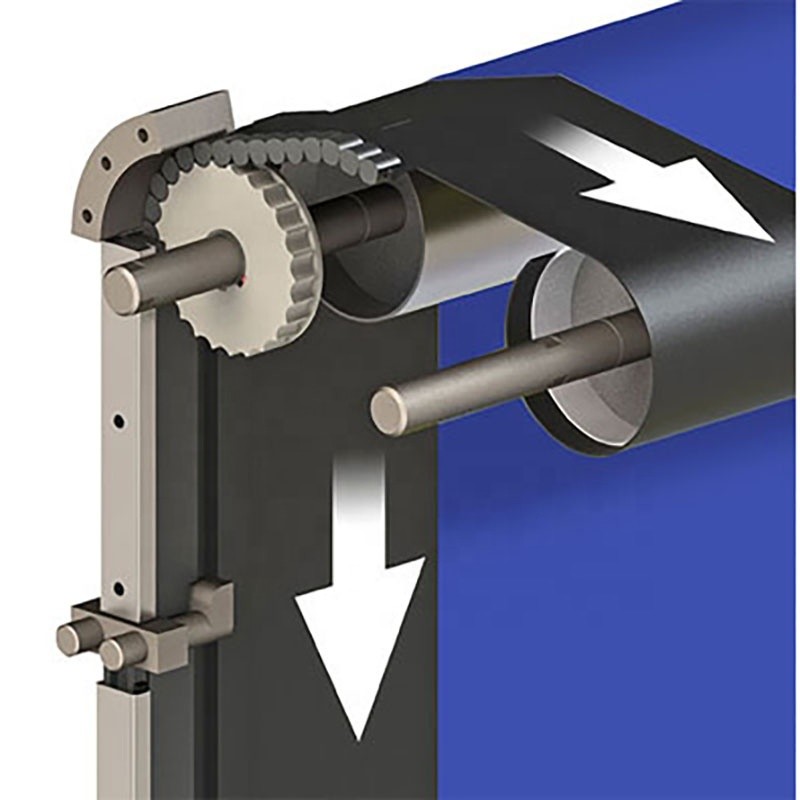

The unique door opening and closing design shortens the door opening cycle and greatly reduces the entry of warm and humid air, thereby improving the efficiency of the freezer.

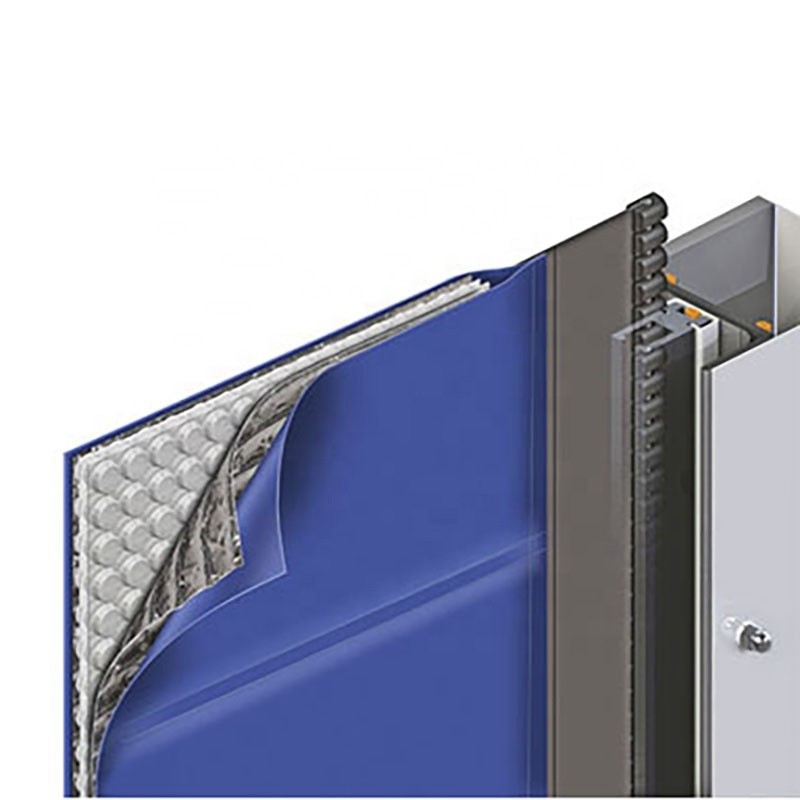

In addition, the door curtain with insulation material (optional) minimizes the energy loss through the door curtain.

The cold storage door curtain is soft and flexible, and the entire door curtain has no load-bearing and hard materials to ensure that the operator and the goods are thoroughly protected in an emergency.


Max. size Width 4000 mm height 5500 mm

Open speed

Close speed

Can up to 2.4 m/s


Door frame

Frame galvanized steel

Option : stainless steel

Curtain reel Steel Φ102* 2mm
Side guide bar The material is reinforced polyethylene, fixed in the C-shaped guide rail, with anti-freeze heating wire
Door opener 1500W, protection level IP 65
Control box The control box is installed next to the door, it is equipped with a door open button, a door close button, an emergency stop switch and a power switch, protection level: IP53, with frequency converter
Standard detector Photoelectric protection on the door track, WDD wireless security soft bottom protection system

Single phase 230v—23A

50-60 Hz

Working temperature -30 ℃ to + 5 ℃
Curtain color option Yellow,orange,red,blue,green,grey,white,black etc
