PLC Control High Speed Rolling Doors 2000x2500mm For Warehouse

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: HS001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Bubble film pack in wooden case
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Name: Fast High Speed Door Application: Warehouse
Type: Roller Shutter Door Project Solution: Graphic Design, Total Solution For Projects
Material: Mainly Material: PVC , Frame Material: Aluminum Alloy. Regualr Size:: 2000*2500mm, 1800*2500mm, 2200*2500mm
Cross Bar(Guide Rail): 1. Aluminum Lath 2. Steel (Standard) View Window: Transparent Window: Middle Section/Bottom Section Evern Full Transparent.
High Light:

PLC Control High Speed Rolling Doors


High Speed Rolling Doors 2000x2500mm


PLC High Speed Roll Up Doors

Product Description

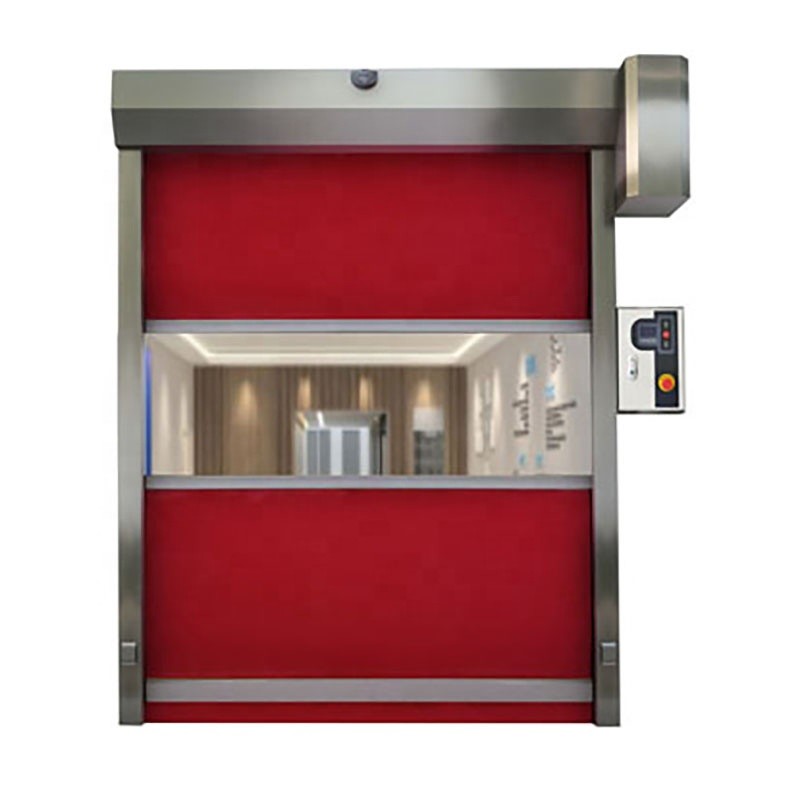

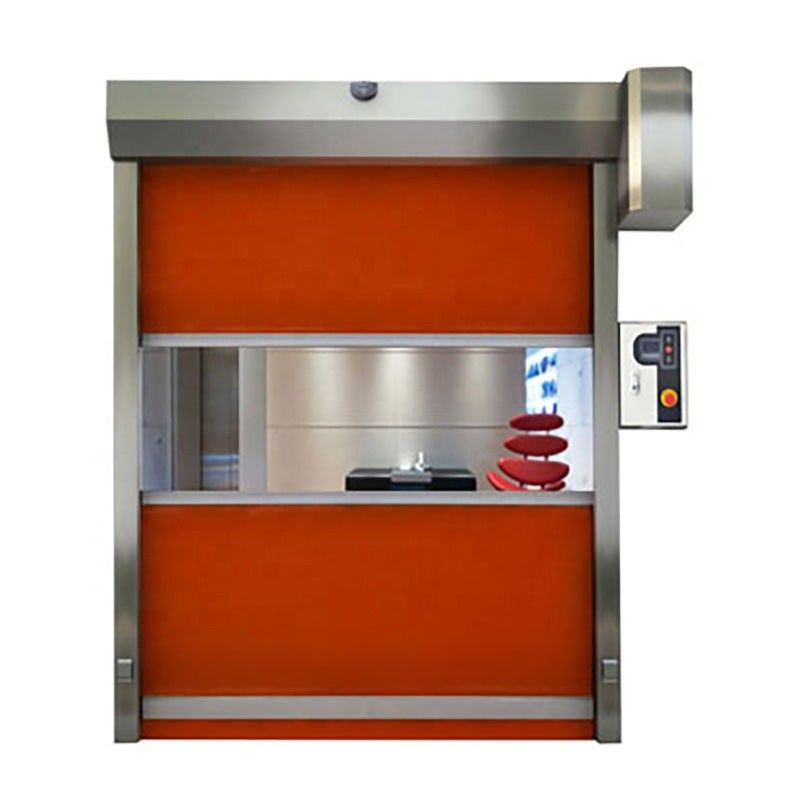

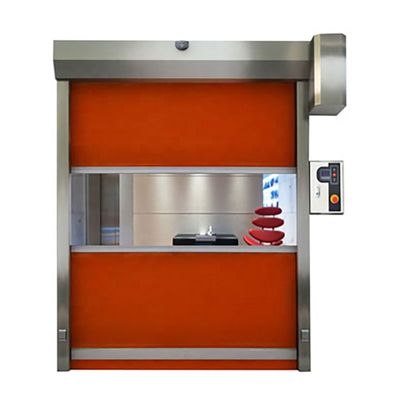

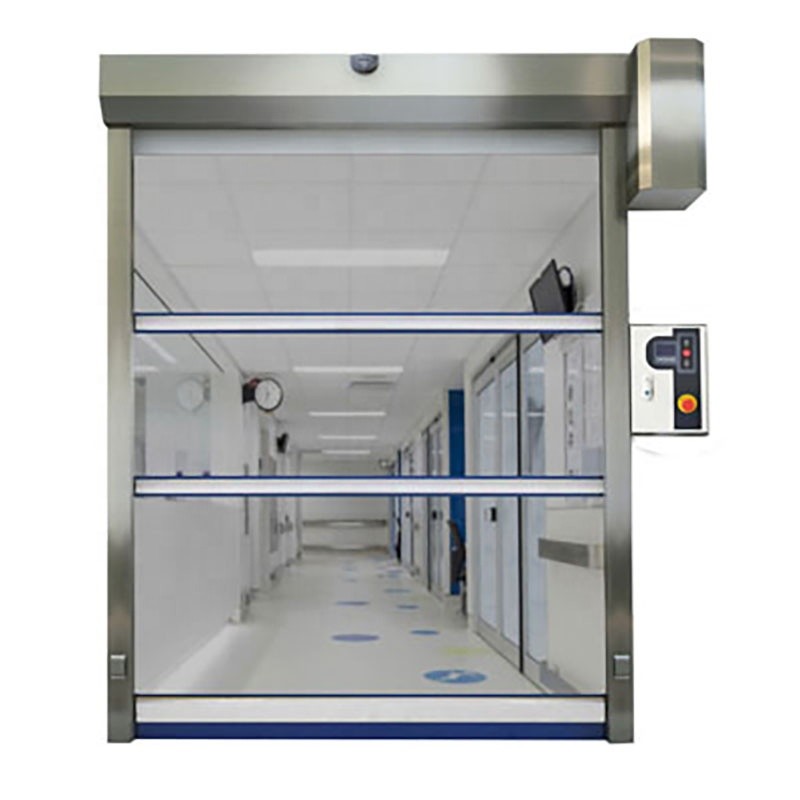

High Speed Rolling Doors


With a speed of more than 0.6 meters per second, high-speed door is an energy-saving type which is a perfect option for logistics channels, large entrances.


Energy-saving features of fast rolling doors:


1. Speed ​​saving and energy saving

All fast rolling shutters scan opening speeds of 1500-2000 mm/s, and the intensive production area ensures rapid energy saving. It is applied to internal doors such as large-area openings in logistics channels (smell, breathing reduction, isolation requirements, etc.). It can ensure a good working environment and material communication, slight fatigue and hygiene.

2. Convenient, fast, safe and reliable

High-frequency opening (1000-1500 times/day), high stability, reliable quality; good wind resistance, strong impact resistance, and can withstand wind speeds equivalent to five to six levels; so fast rolling doors are equipped with infrared sensors at the bottom The device, there is also an airbag at the bottom of the rolling door, and an anti-collision device is installed at the bottom of the door. A slight collision with an object will also stop the door and raise it in the opposite direction, which meets European national safety standards..


3. Economical and convenient for maintenance

The fast rolling door developed by our company is beautiful in appearance and durable. The external structure is stainless steel, coated steel, etc. The internal configuration in many kinds with different prices. The design is reasonable, the curtain does not accumulate dust, the curtain can be removed and replaced, and it is easy to clean, which meets the requirements of CMP.


4. Multiple open function options

The main control systems are: Standard configuration: radar sensor / button control.

Optional: geomagnetic ring control, pull rope control, swipe card, access control networking, multi-door interlock, anti-collision pillar, alarm, etc.

Door frame

The largest specification produced by domestic manufacturers can achieve W7*H14m

Opening and closing speed: 0.6-2.0 m/s

2.0mm-2.5mm thick cold-rolled plate steel structure or aluminum alloy profile.

Door curtain

1. High-density industrial base fabric

 Place of Origin: France Thickness: 0.8mm-2.0mm;

 Technical parameters: tensile strength (warp/weft): 5700/5100 N/5cm;

 Tear strength (warp/weft): 900/80 N; operating temperature: -30℃~+70℃;

 Fire rating: French standard NF-P92-503 M2 or German standard DIN 4102 B1

2. Fully transparent PVC film thickness: 1.3mm-2.0mm
3. Control system: controlled by high-tech PLC and frequency converter, as well as single-chip microcomputer control.

Curtain color The fast rolling door has a variety of colors to choose from, such as: yellow, gray, blue, dark blue, orange, or fully transparent. The view window can be rectangular or elliptical, which increases safety and convenient management.
technical parameter

Safety performance-------orange photoelectric flashlight. When the door is opened or closed, the red light flashes as a warning. When the power is off, it is equipped with a manual lever to gently open and close; it is safer and more convenient.

Sealing performance-------The bottom end is equipped with an elastic PVC cloth, which can be tightly combined with various uneven grounds, meet to cleanliness class 10000. The two sides of the doorpost are equipped with sealing brushes or rubber sealing strips. Reduce noise and increase sealing effect.

Use and control-------button, pull rope, remote control, automatic geomagnetism, radar, photoelectric, linkage interlock, induction
