Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100sets |
|
Detail Information |
|||
| Material: | Stainless Steel | Purification Rank: | ISO 5 CLASS A |
|---|---|---|---|
| Control System: | LCD Control Board | Application: | Hospital,operating Room |
| Air Speed: | 0.45 M/s +-20% | Name: | Laminar Flow Trolley |
| Filter: | HEPA Filter And Pre Filter | Air Flow: | 90 FPM(0.45 M/s) |
| High Light: | Laminar Airflow Stainless Steel Medical Cabinet,Cleanroom Stainless Steel Medical Cabinet,Laminar Airflow Clean Room Trolley |
||
Product Description

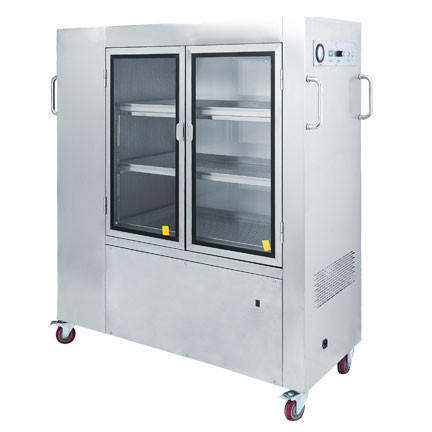

ISO5 Laminar Airflow Stainless Steel Medical Cabinet Mobile Trolley
Horizontal Laminar Airflow Clean Room Trolley Stainless Steel Material
transfer Carts with off-grid battery operation provide product protection and enable sterile transportation through inferior cleanrooms (e.g. manual dry freezer loading). Product protection is ensured by means of targeted air flow. A clean and low-turbulence air flow (laminar air flow) flows horizontally into the work area of the transfer cart and escapes into the surrounding area. Airborne particles are collected in a controlled manner. All safety-relevant functions are constantly monitored electronically.
The whole laminar flow car is made of 304/316L stainless steel plate, and the bottom of the car is made of universal casters with brakes. The body is composed of several major components such as a shell, a high-efficiency filter, an air supply system, a lighting lamp, and an operation module. In addition, a combination of ultraviolet germicidal lamps, microcomputer controllers, lead-acid batteries or lithium batteries, and UPS power devices can be added as needed. The equipment has the advantages of simple structure, flexible movement, convenient operation and use, and beautiful appearance.
Laminar Flow Horizontal/Vertical Trolley Technical Details:
1. Self-supporting stainless steel construction on rollers
2. Removable shelves
3. Battery-operated for up to 6 hours
4. Laminar air flow system (horizontal flow)
5. Pre-filter cartriges behind the perforated plates
6. HEPA filter H14
7. Perforated plate air outlet surface
8. Automatic fan control for a constant LAF speed
9. Integrated control system
10.Technical documentation according to the Machinery Directive
11. Qualification documentation
12. GMP-/FDA-compliant design
13. CE declaration of conformity
Laminar Flow Mobile Trolley Specifications:
Customer Design is Available.
| Item | Parameters |
| Cleanliness level | ISO5 ( Class100 FS209E) |
| Number of colonies | ≤0.5pcs/dish*(Ø90 petri dish) |
| Average air flow | 0.36~0.54m/s (ajustable) |
| Noise | ≤65dB(A) |
| Vibration half peak | ≤4um |
| Power | AC 220V/50HZ |
| HEPA Filter | H14(99.995%~99.999%@0.3um) |
| UPS Power Supply | Netac, Shante and other brands |
| Accumulator | Lead-acid battery/lithium battery |
| Controller | Touch microcomputer controller |
| Pressure Gauge | Dwyer or domestic |
| Battery life | ≥2H(can be customized ) |
