Vertical Laminar Flow SS304 361L Transport Cabinet LCD Control Board

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Material: 304 Or 316L Stainless Steel. Purification Rank: ISO5 CLASS A
Control System: LCD Control Board Application: Hospital,operating Room
Air Speed: 0.45 M/s +-20% Product Name: Transport Cart
High Light:

361L Transport Cabinet


SS304 Transport Cabinet


361L stainless steel cabinet

Product Description

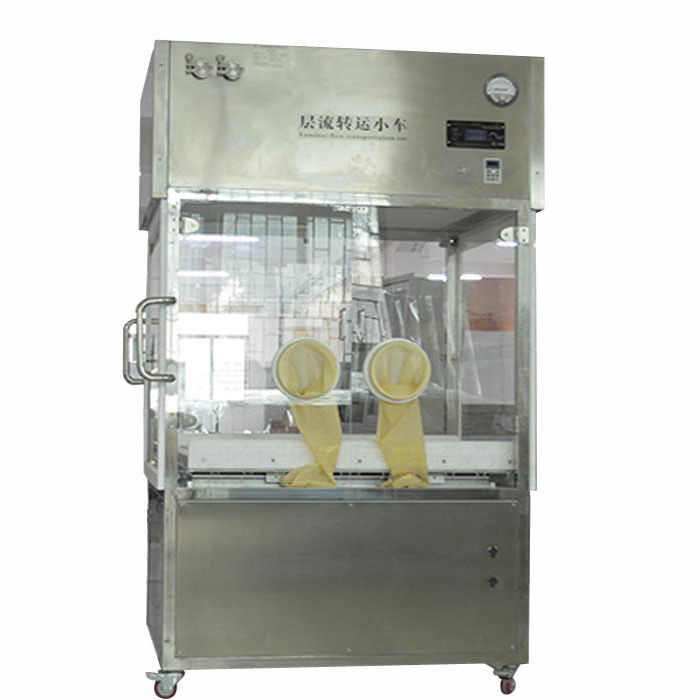

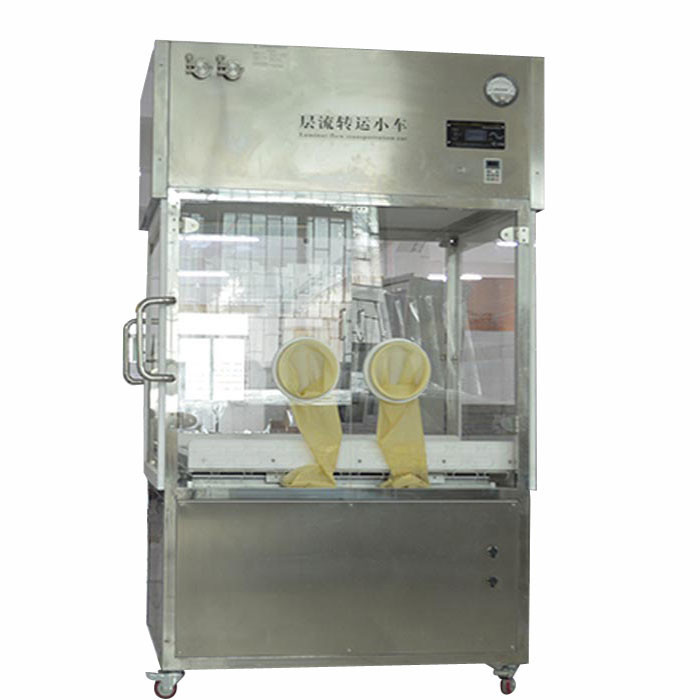

Vertical Laminar Flow 361L Transport Cabinet LCD Control Board


Clean Room Equipments Clean Air Vertical Laminar Flow Transport Cart


Used in the pharmaceutical industry, materials are transported from the filling outlet to the freeze dryer.
And the medicine box is transported into the tools and instruments in the filling line. The equipment can quickly and efficiently realize the safe and seamless connection between the material and the filling isolator (RABS) or the freeze dryer and the oven


Vertical Laminar Flow Transport Cart Introduction:


ALPHACLEAN brand laminar air flow transport carts are designed to transport products in an ISO 4 or ISO 5 environment. that constructed of 304 or 316L stainless steel.

All seams are welded internally utilizing panelized construction. Welds ground smooth and polished. Heavy duty,stainless steel casters, electro-polishing or passivating available.

all carts custom made to client requirements.


Vertical Laminar Flow Transport Cart Feature:


1: Easily removable gel seal HEPA air filter (rated 99.99% efficiency @0.3um particles or an ULPA air filter, rated to 99.999% efficient@ 0.12um particles


2: Self-contained battery and charger system designed for continuous use. typical battery run time 1 to 4 hours.


3: Pressure gauge alarms and low run time Indicators are standard.


4: 304 Stainless steel construction ensures durability and cleanliness(electric -polishing available)


5: The air flow can be single pass exiting through the bottom of the cart or be recirculating to avoid the leakage of the air.


6: Convenient alternative to vacuum sealing, conveyor transport, and other transfer methods


7: Heavy-duty, cushioned casters ensure smooth rolling over any industrial floor type


8: Isolator gloves allows the operation of hazardous.



Technical Parameters
Name laminar flow transport cart
Cleanliness level Class A(cGMP)
Initial pressure drop 180±15Pa
Average air flow 0.45m/s±20%
Noise ≤65dB
Brightness 300Lux above
Vibration amplitude ≤5um X,Y,Z,three way
Outside size 1300*800*1900(mm)
HEPA filter size 1132*630*90 1pc
Max consumption ≤0.4kW
Ppower 220V 50Hz
Illumination 20w
Material of structure 304 stainless steel
Roller weight bearing 40kg
