Workshop Observation Fireproof Dustproof Cleanroom Window Good Airtightness

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 400*600
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
  • Detail Information
  • Product Description

Detail Information

Application: Pharmaceutical ,food Shop,garment Shops Size: Customized
Color: Clear Glass Type: Double Tempered Glass
Thickness: 50 Mm Product Name: Cleanroom Window
High Light:

Dustproof Cleanroom Window


Tempered Cleanroom Observation Window


Fireproof Cleanroom Window

Product Description

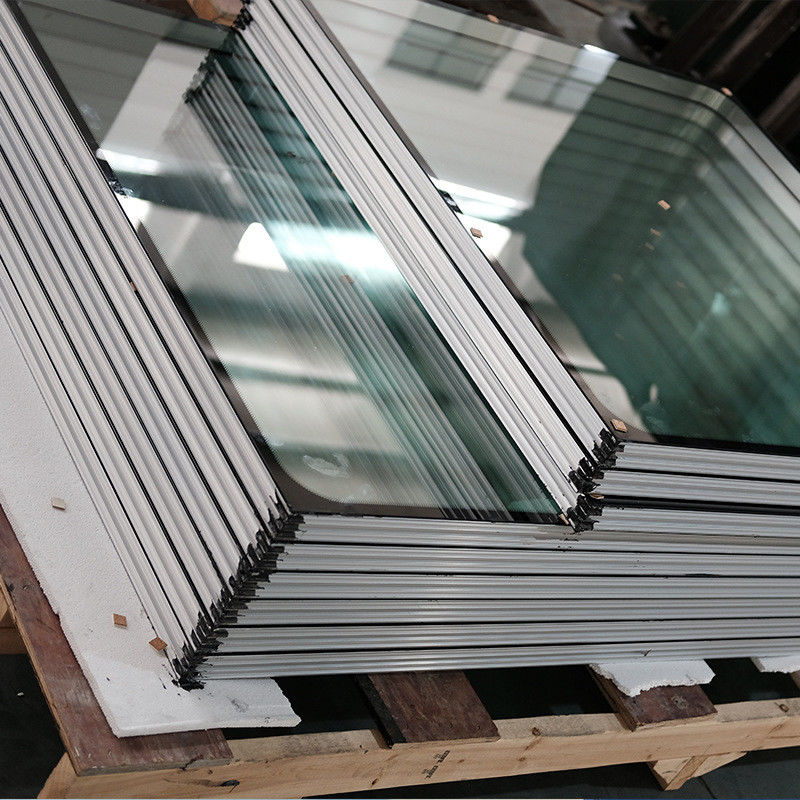

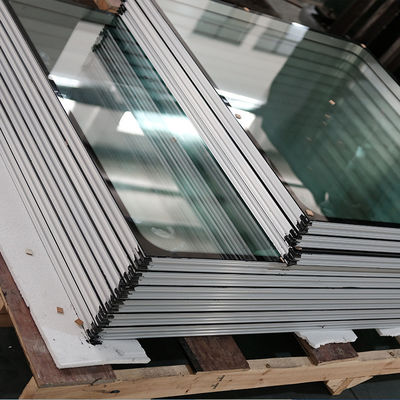

Workshop Observation Fireproof Dustproof Cleanroom Window Good Airtightness


Workshop Dustproof And Soundproof Aluminum Alloy Tempered Glass Purification Observation Window


Widely used in color steel plate wall purification projects, covering medical, food, cosmetics, and electronics manufacturing industries. Fireproof and durable, beautiful appearance, flat overall, easy to clean, good airtightness, etc.


Standard Material

Product name



Outside Frame

50mm thick color steel panel wall


View window

50mm thick tempered double hollow glasses

Flush with the color steel panel walls


“+” aluminum




  1. Made of 5mm double tempered glass and optional aluminum profile/stainless steel frame

  2. Filled with dry agent or nitrogen to avoid moisture inside

  3. Flush with wall

  4. Right and round angle optional

  5. Dimension can be customized as actual requirement

  6. Widely used in pharmaceutical,hospital,laboratory,etc

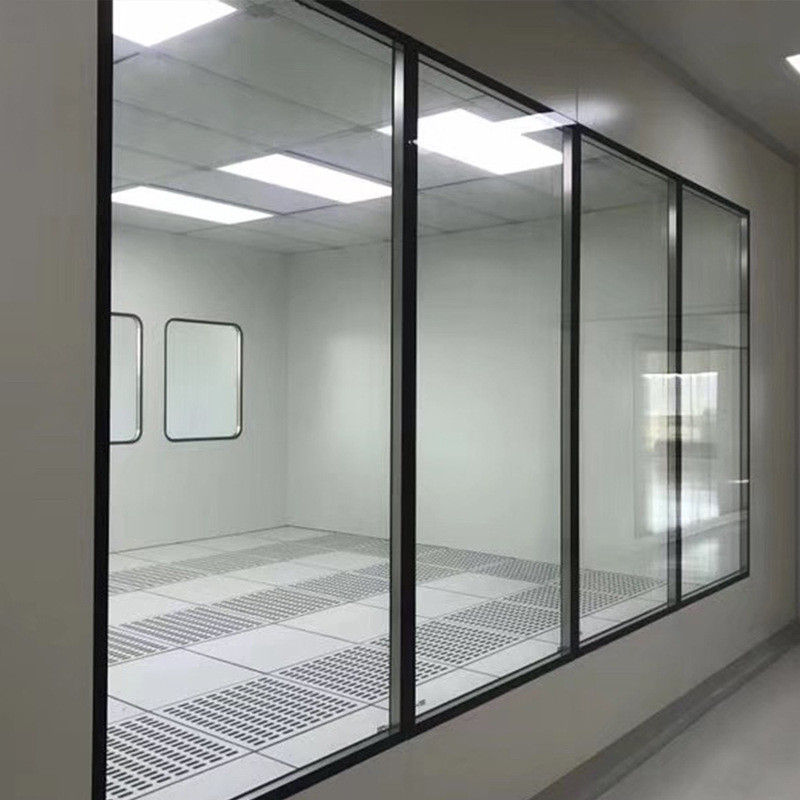

Flush mounted on the wall
the wall and the window are in the same plane, and the installation is flexible and beautiful. It can be made according to the thickness of different walls, especially suitable for 50~100mm thick color panel.

Sound insulation:
generally hollow glass can reduce noise by about 30 decibels,
and insulating glass filled with inert gas can be reduced by about 5 decibels on the original basis, 80 decibel noise is reduced to 45 decibels and is extremely quiet.

hollow glasses with good thermal insulation performance

In the environment with large temperature difference between indoor and outdoor in winter, frosting will occur on single-layer glass doors and windows, the use of insulating glass has no frosting.





50, 75, 100mm ;to sandwich panel’s thickness


screen print black or white ,width 20-25mm


aluminum alloy, SUS304 stainless steel for window frame; 5mm tempered glass


Dry agent, N2 nitrogen


Right angle/round angle /right angled outside and round inside


“+” aluminum to manual sandwich panel

Note: The dimension of clean room window can be customized according to requirements.
