Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 400*600 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Application: | Pharmaceutical ,food Shop,garment Shops | Size: | Custom |
|---|---|---|---|
| Color: | Clear | Glass Type: | Double Toughened Glass |
| Thickness: | 50 Mm | Product Name: | Cleanroom Toughened Glass Window |
| High Light: | Dust Free Toughened Glass Window,Custom Toughened Glass Window,Toughened Glass Clean Room Windows |
||
Product Description

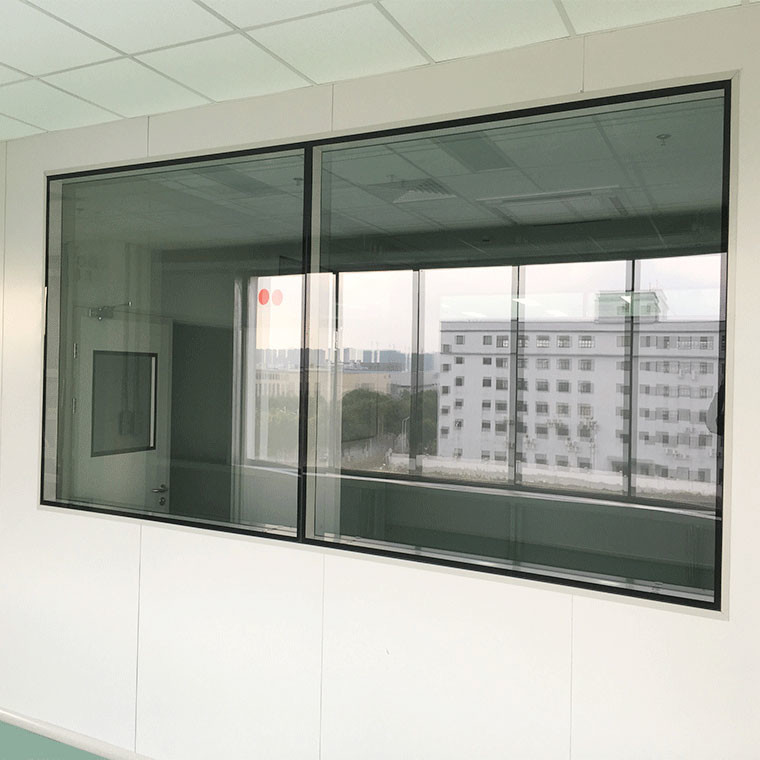

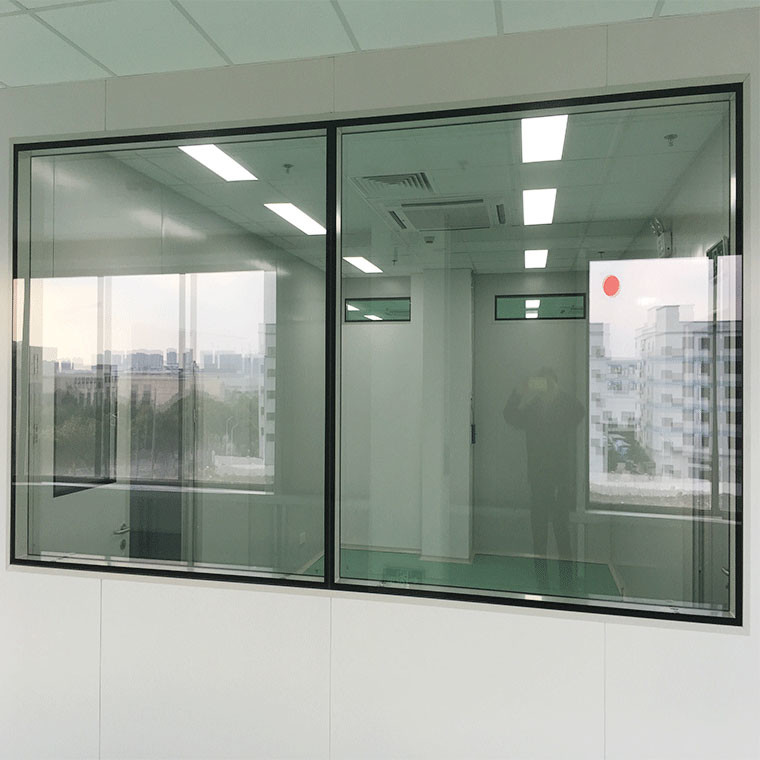

Custom Dust Free Toughened Glass Window Inlined With SS304 Clean Room
Inlined With 304 Stainless Steel Clean Room Dust-Free Clean Window
Product Principle
Insulating glass is composed of two or more pieces of glass. The middle of the glass is separated by a hollow aluminum alloy frame filled with desiccant. At the same time, the hollow part is filled with dry air or inert gas. The aluminum alloy frame and the glass are separated by butyl glue After bonding and sealing, use polysulfide glue or structural glue for sealing treatment
FEATURES
Flush mounted on the wall
the wall and the window are in the same plane, and the installation is flexible and beautiful. It can be made according to the thickness of different walls, especially suitable for 50~100mm thick color panel.
Sound insulation:
generally hollow glass can reduce noise by about 30 decibels,
and insulating glass filled with inert gas can be reduced by about 5 decibels on the original basis, 80 decibel noise is reduced to 45 decibels and is extremely quiet.
hollow glasses with good thermal insulation performance
Anti-frosting:
In the environment with large temperature difference between indoor and outdoor in winter, frosting will occur on single-layer glass doors and windows, the use of insulating glass has no frosting.
|
Width |
982,1182,2370mm |
|
Thickness |
50, 75, 100mm ;to sandwich panel’s thickness |
|
Frame |
screen print black or white ,width 20-25mm |
|
Material |
aluminum alloy, SUS304 stainless steel for window frame; 5mm tempered glass |
|
Infill |
Dry agent, N2 nitrogen |
|
Shape |
Right angle/round angle /right angled outside and round inside |
|
Connection |
“+” aluminum to manual sandwich panel |
|
Note: The dimension of clean room window can be customized according to requirements. |
|
