Alpha Clean Air Technology Co.,Ltd

150x150 - 450x450mm Egg Crate Return Air Grilles With Filters

Product Details:
Place of Origin: shenzhen,china
Brand Name: alphaclean
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: regular carton box, wooden pallet
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs
  • Detail Information
  • Product Description

Detail Information

Material: Aluminum Size: 150*150 ~ 450*450
Shape: Square Function: Air Supply
Application: Hotel For Ceiling Feature: Residential Fresh Air Intake Venting
High Light:

450x450mm Return Air Grilles

,

150x150mm Return Air Grilles

,

Egg Crate Return Air Vent Covers

Product Description

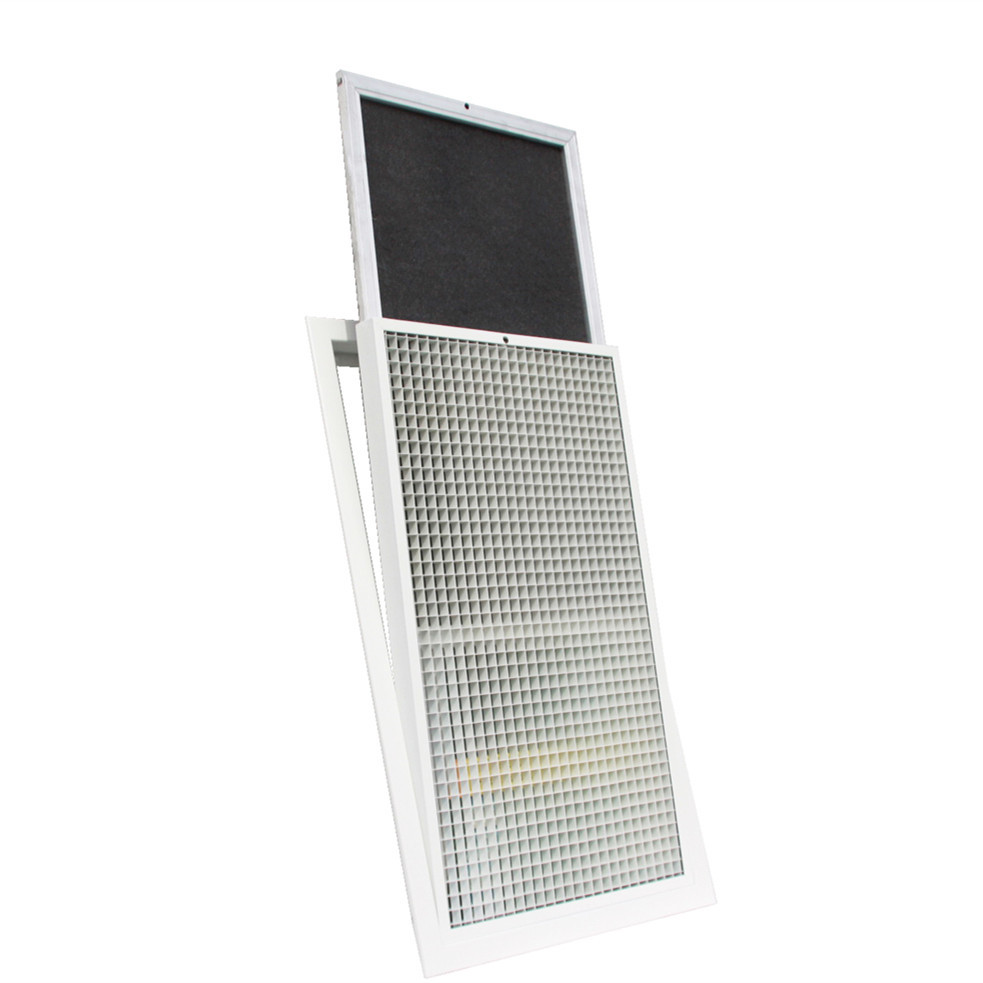

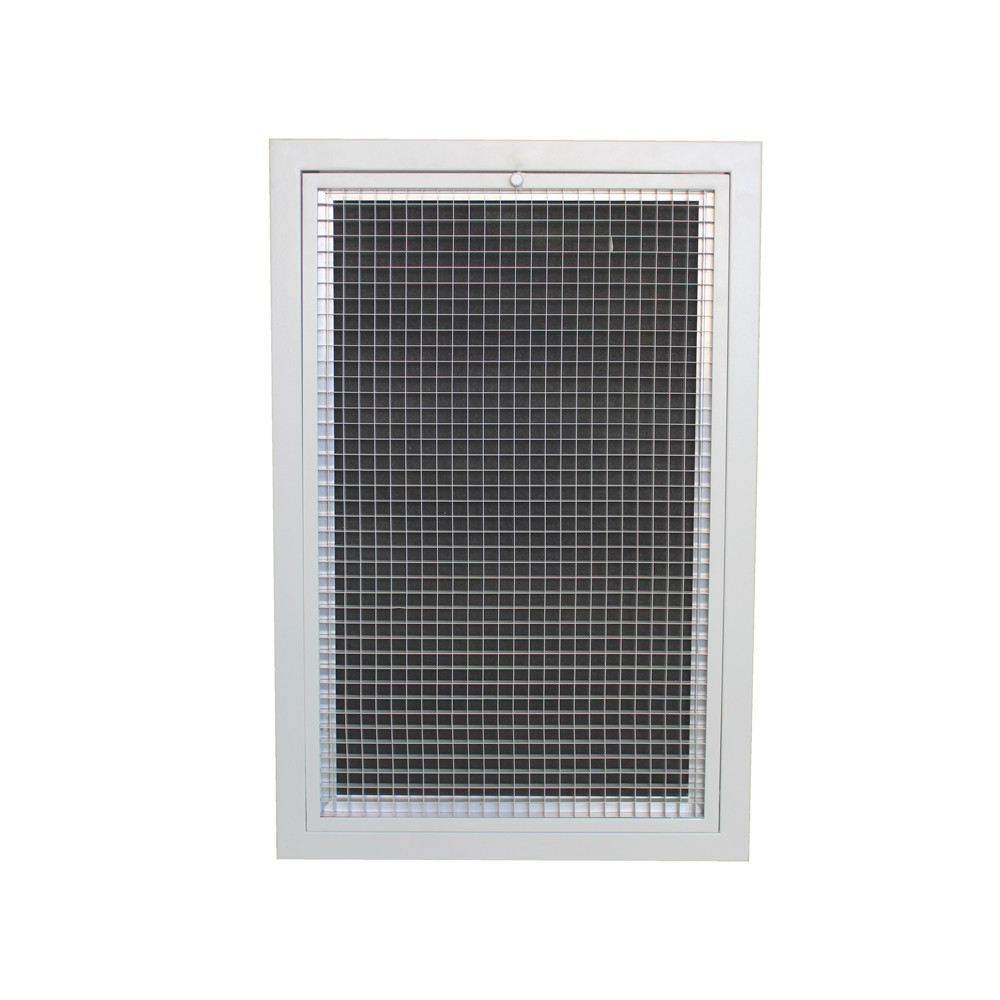

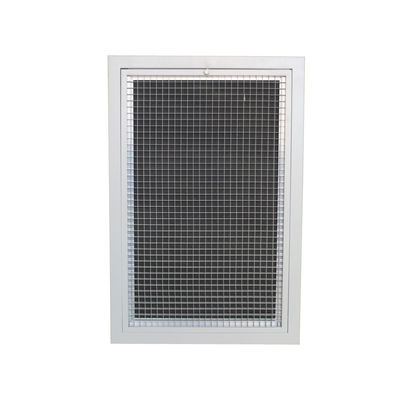

Egg Crate Return Air Grilles With Filters



It has the function of filtering and recycling indoor air, the filtering effect is remarkable, the return flow is quiet, and there are different types filtering material of activated carbon filter cotton, ordinary filter cotton, and nylon net pre filter. This product has a variety of specifications and sizes. Hinged for easier installation and cleaning;

Suitable for air filtration, air discharge and air recycling in different occasions.



material: aluminum



face size = neck size + 50mm



height of the frame : 38 mm



matching products: filter ,return air box etc.



150x150 - 450x450mm Egg Crate Return Air Grilles With Filters 0





Item code Neck size Face size
RAG2525 250X250 300X300
RAG3030 300X300 350X350
RAG3535 350X350 400X400
RAG4040 400X400 450X450
RAG4545 450X450 500X500
RAG5050 500X500 550X550
RAG5555 550X550 600X600
RAG6035 600X350 650X400
RAG6040 600X400 650X450
RAG6050 600X500 650X550
RAG6055 600X550 650X600
RAG6060 600X600 650X650
RAG6555 650X550 700X600
RAG7040 700X400 750X450
RAG7050 700X500 750X550
RAG7055 700X550 750X600
RAG7540 750X400 800X450
RAG7545 750X450 800X500
RAG7550 750X500 800X550
RAG7555 750X550 800X600
RAG9040 900X400 950X450
RAG9045 900X450 950X500
RAG9050 900X500 950X550
RAG9055 900X550 950X600
RAG9060 900X600 950X650
RAG10040 1000X400 1050X450
RAG10050 1000X500 1050X550
RAG11555 1150X550 1200X600
RAG12040 1200X400 1250X450
RAG12060 1200X600 1250X650
