Product Details:
|
|
| Brand Name: | alphaclean |
|---|---|
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | carton,wooden box |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T,paypal, Western Union |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Product Name: | Square Air Diffuser | Color: | White, Black,anodized |
|---|---|---|---|
| Size: | 6x6'',9x9'',12x12'',15x15'',18x18'' | Shape: | Square |
| Material Thickness: | 0.8/1.0mm | Function: | Air Outlet |
| Application: | Hotel ,building | Use: | Air Circulation System |
| High Light: | 1.0mm Aluminum Air Duct Grilles,0.8mm Aluminum Air Duct Grilles,Double Deflection Air Duct Covers |
||
Product Description

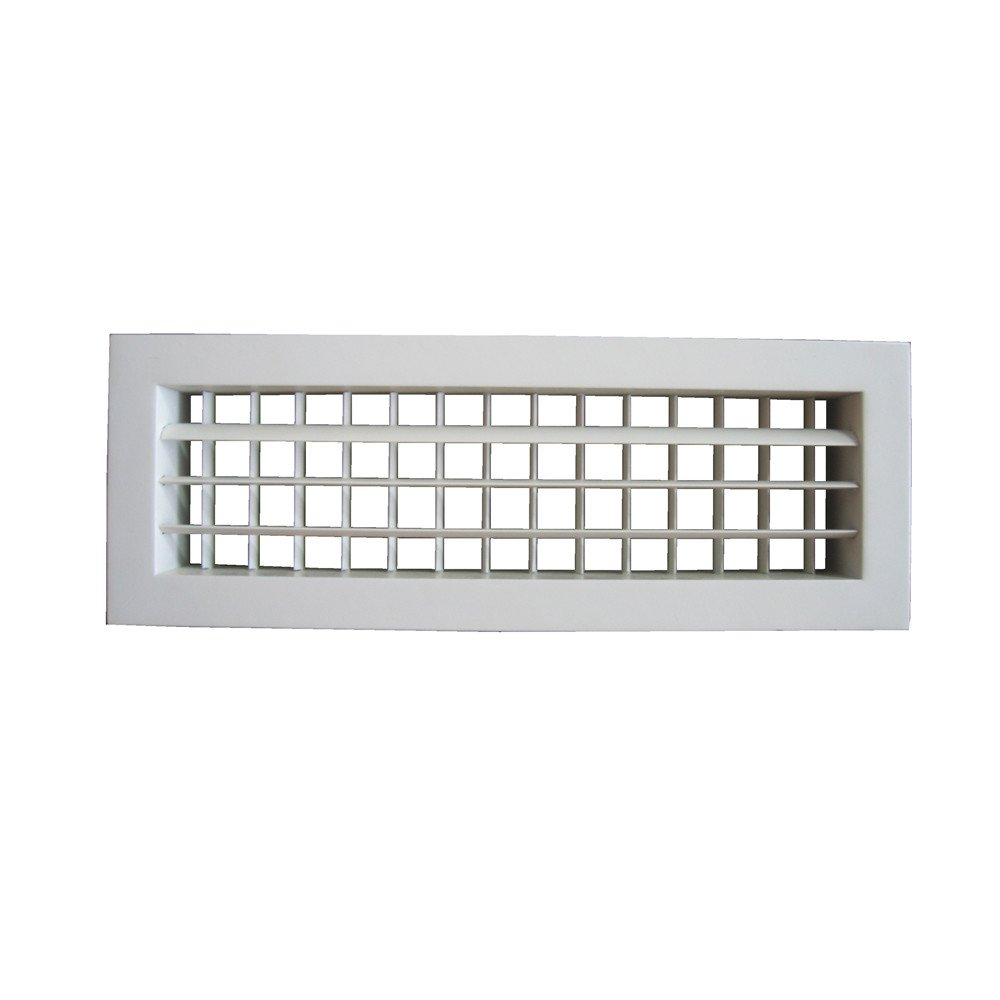

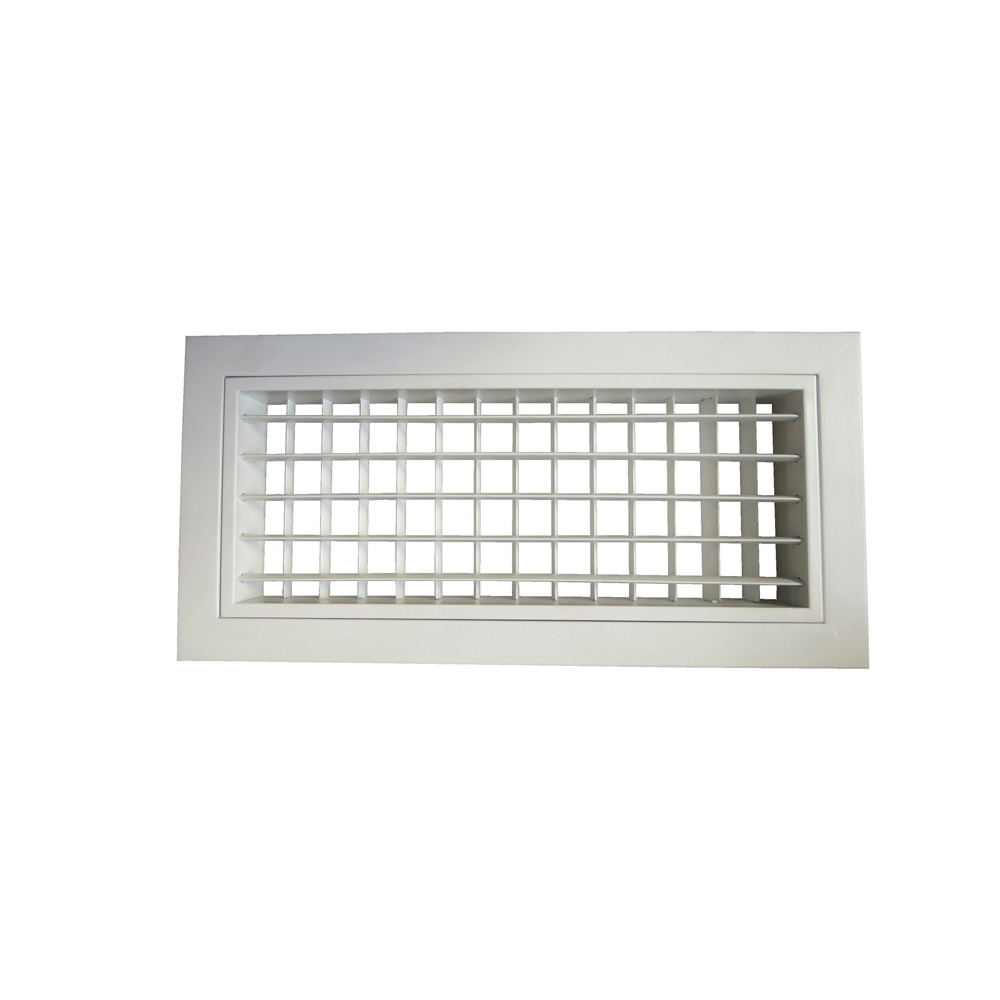

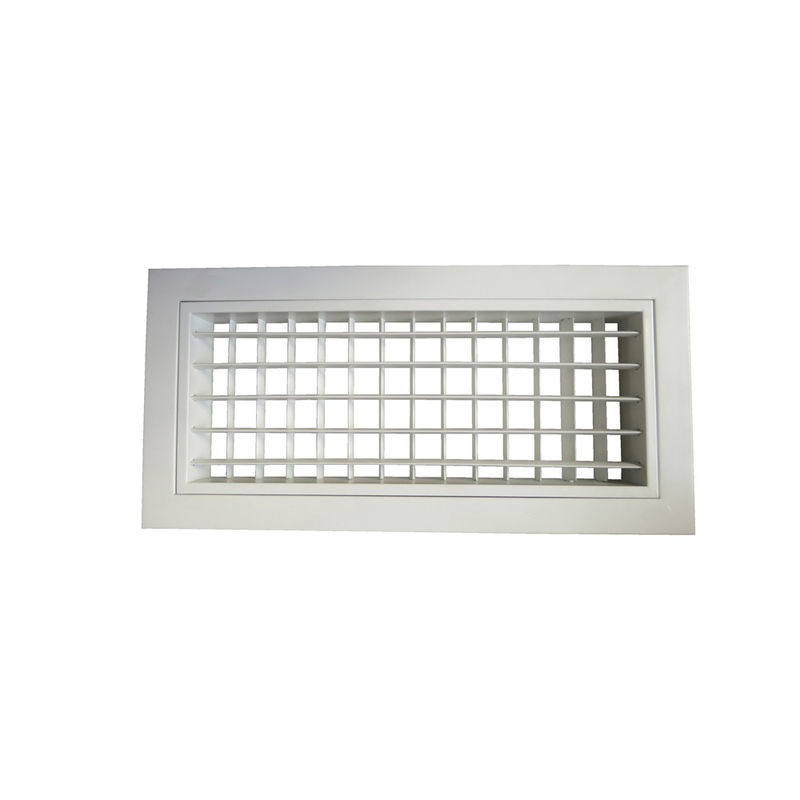

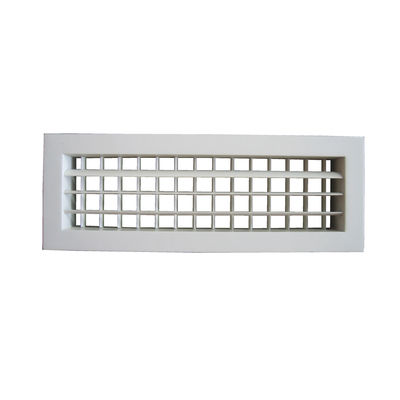

double deflection air supply ducting grilles
The wind outlet of the wall is arranged on the wall or other fixed positions, and can be used directly with the fan coil. The blade angle can not be adjusted by 0-180, and the blade angle can be adjusted to achieve different air supply distance and diffusion angle.
two types : remonvable core or non removable core
material: aluminum
face size = neck size + 50mm
height of frame : 50 mm
matching accesories: fan, OBD, Filter
| Item code | Neck size | Face size |
| RCDDR 3010 | 300x100 | 350×150 |
| RCDDR3015 | 300x150 | 350×200 |
| RCDDR3510 | 350x100 | 400×150 |
| RCDDR3515 | 350X150 | 400×200 |
| RCDDR4010 | 400X100 | 450×150 |
| RCDDR4015 | 400X150 | 450×200 |
| RCDDR4020 | 400X200 | 450×250 |
| RCDDR4515 | 450X150 | 500×200 |
| RCDDR6015 | 600X150 | 650×200 |
| RCDDR6020 | 600X200 | 650×250 |
| RCDDR7515 | 750X150 | 800×200 |
| RCDDR7520 | 750X200 | 800×250 |
