yellow Water Resistant MERV14 Pocket Air Filters For HVAC Systems

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 24*24"20 inches
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs
  • Detail Information
  • Product Description

Detail Information

Color: Pink,yellow Product Name: Fiberglass Fiber Filter
Material: Meltblown Fiberglass Size: 595*595*500-6P
Principle: Particle Adsorption MERV Level: Medium Efficiency MERV9,10,11,12,13,14,15
High Light:

595mm Pocket Air Filters


Pocket Air Filter Merv 14


595mm Water Resistant Air Filter

Product Description

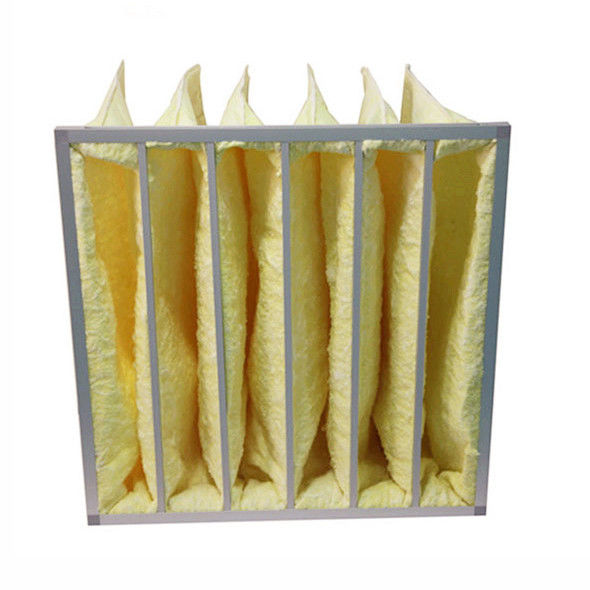

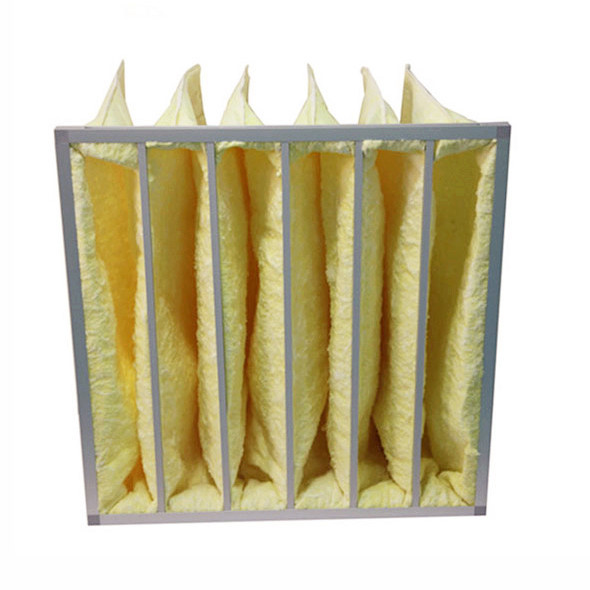

Yellow Water Resistant MERV14 Pocket Air Filters For HVAC Systems


MERV14 /15 Pocket Water Resistant Air Filters For Hvac Systems


The Glass Fiber Bag Filter is completely constructed of non-corrosive materials.

The bag is sewn with a constant media spacing stitch for uniform dust loading and reduced pressure drop.


Unlike most filters, the total filter media area of the BAG filter can be up to 30 times the face area.

This maximizes the filter’s life.


Along with low maintenance costs, single-body construction allows for easy handling and installation.


Product Structure


The Glass Fiber Bag Filters have a rigid rust-resistant galvanized steel channel frame which support a multi-pleated, fine diameter media.

The Glass Fiber Bag Filter design provides efficiency and dirt retention throughout the life of the filter.

Each pleat is sewn with a constant length span stitch to ensure continuous throat and pleat configuration.

This assures consistent pressure drop and complete media utilization. Every stitch is covered by a hot melt adhesive.


Product features:


1.45%, 65%, 85%, and 95% efficiencies available

2.Galvanized steel or AL header

3.Galvanized or AL inner support frame in each pocket

4.UL Class 2 as to flammability only

5.Standard and custom sizes available

6.Filter cartridges are 100% disposable.



The most common use Specification and technical parameters


Customer Size is Available.


size(mm) pocket Media area Effieicnecy Air Flow Resistance
592x592x600 8 6 F6 3400 110pa
490x592x600 6 4.5 F6 2800 110pa
287x592x600 4 3.1 F6 1700 110pa
490x490x600 6 3.8 F6 2380 110pa
592x592x600 8 6 F7 3400 138pa
490x592x600 6 4.5 F7 2800 138pa
287x592x600 4 3.1 F7 1700 138pa
490x490x600 6 3.8 F7 2380 138pa
592x592x600 8 6 F8 3400 169pa
490x592x600 6 4.5 F8 2800 169pa
287x592x600 4 3.1 F8 1700 169pa
490x490x600 6 3.8 F8 2380 169pa
