HVAC Facilities fiberglass F7 Dust Collector Filters Medium Efficiency

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 24*24"
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs
  • Detail Information
  • Product Description

Detail Information

Color: Pink,yellow Product Name: Fiberglass Fiber Filter
Material: Meltblown Fiberglass Size: 595*595*500-6P
Principle: Particle Adsorption Filtration Level: Medium Efficiency F5 ,F6,F7,F8,F9
High Light:

F7 Dust Collector Filters


F7 Bag Filters


Meltblown fiberglass Bag Air Filter

Product Description

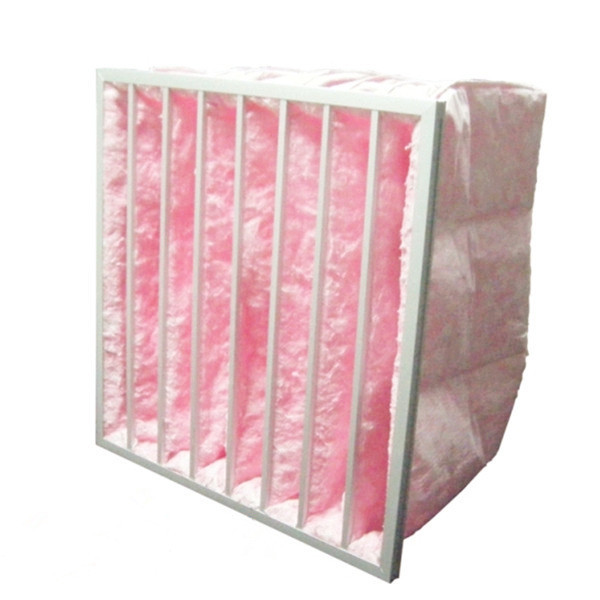

HVAC Facilities Fiberglass F7 Dust Collector Filters Medium Efficiency


Dust Collector Filters Glass Fiber Bag Filters For HVAC Facilities


The Glass Fiber Bag Filter is completely constructed of non-corrosive materials.

The bag is sewn with a constant media spacing stitch for uniform dust loading and reduced pressure drop.

This maximizes the filter’s life. There are no maintenance requirements between changes.

Along with low maintenance costs, single-body construction allows for easy handling and installation.


Product features:


1. 45%, 65%, 85%, and 95% efficiencies available

2. Galvanized steel or AL header

3. Galvanized or AL inner support frame in each pocket

4. UL Class 2 as to flammability only

5. Standard and custom sizes available

6. Filter cartridges are 100% disposable.



The most common use Specification and technical parameters


Customer Size is Available.


size(mm) pocket Media area Effieicnecy Air Flow Resistance
592x592x600 8 6 F6 3400 110pa
490x592x600 6 4.5 F6 2800 110pa
287x592x600 4 3.1 F6 1700 110pa
490x490x600 6 3.8 F6 2380 110pa
592x592x600 8 6 F7 3400 138pa
490x592x600 6 4.5 F7 2800 138pa
287x592x600 4 3.1 F7 1700 138pa
490x490x600 6 3.8 F7 2380 138pa
592x592x600 8 6 F8 3400 169pa
490x592x600 6 4.5 F8 2800 169pa
287x592x600 4 3.1 F8 1700 169pa
490x490x600 6 3.8 F8 2380 169pa
