stainless steel Frame PP Fiber 003 001184 01 Panel Air Filters

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: rohs
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: PE bag + carton box
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per week
  • Detail Information
  • Product Description

Detail Information

Model: 003-001184-01 Dimension: 285*243*22mm
Frame: Paper Construction: Panel Filter
Material: F7 PP Packing: Polybag
High Light:

003 001184 01 Panel Air Filters


003 001184 01 PP Fiber Filter


Cardboard Panel Air Filters

Product Description

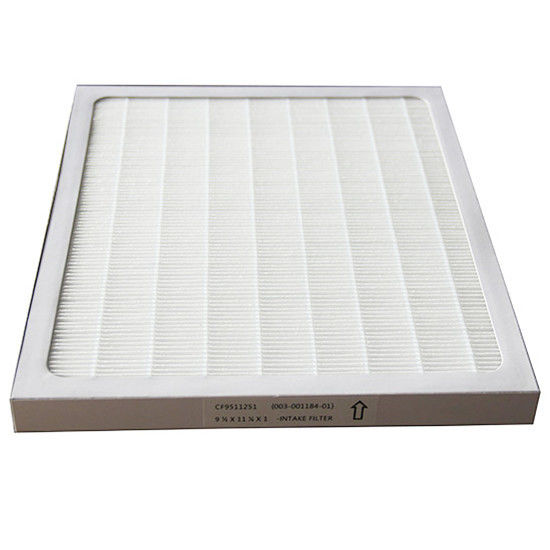

Stainless Steel Frame PP Fiber 003 001184 01 Panel Air Filters


Cardboard Frame Instrument Air Filters 003 001184 01




1. Waviness of pleat block along length be kept to a minimum


2. Pleat packs are much more flat


3. Minimum pleat height is 8mm, maximum height is 80mm


4. Glue beads runs the length of the element


5. Normal distance between two glue beads of the element is 50.8mm/2inches (adjustable according to requirement)


Model No Dimensions
Rated Air Flow
Initial Pressure Drop
Efficiency Material
Frame Media Face Guard
ACF01 595×595×46 3200 40 G3 cardboard
galvanized steel
stainless steel
activated carbon fiber
activated carbon felt
aluminum mesh
galvanized steel mesh
ACF02 295×495×46 1300
ACF03 595×295×46 1600
ACF04 495×495×46 2200
ACF05 295×295×46 800


For use with the Following Christie Digital Cinema Projectors:


  • CP4220
  • CP4230
  • D4K25
  • D4K35
  • CP2220
  • CP2230


The replacement air filters adopts cardboard frame and PP fiber, which is low pressure drop and arrest very fine particles effectively.


The replacement filters should be changed once every three months, therefore it extend the lifetime of the projectors.

We have automatic production line, and we can produce the cartridges with different specifications.
