Pleated Activated Carbon Fiber Furnace AC Merv 8 Panel Air Filters

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: rohs
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: PE bag + carton box
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per week
  • Detail Information
  • Product Description

Detail Information

Name: Pleated Carbon AC Furnace Air Filters Media: Non Woven Cloth + Activated Carbon
Frame: Black Paper Construction: Pleated Panel Filter
Properties: Educes Common Household Dust, Pollen, Mites, And Other Particles Efficiency: MERV 8
High Light:

G3 Panel Air Filters


DIN 53438 Panel Air Filters


Merv 8 Carbon Furnace Filters

Product Description

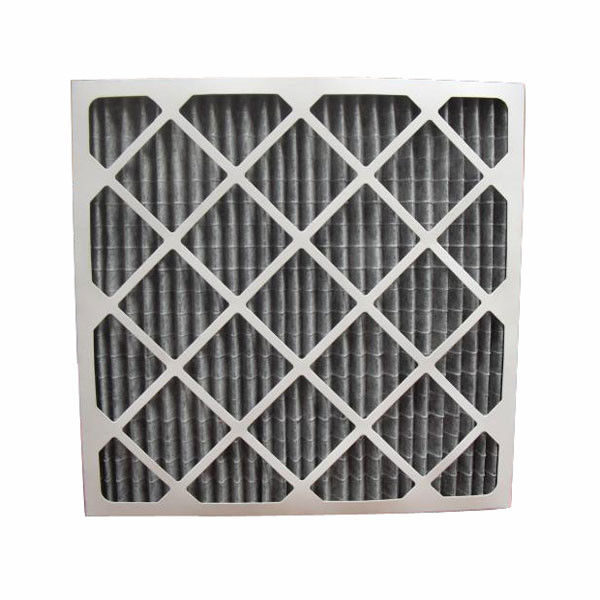

Pleated Activated Carbon Fiber Furnace AC Merv 8 Panel Air Filters


High Efficiency Merv 8 Pleated Activated Carbon Fiber AC Furnace Air Filters


As a professional manufacturer of air filtering products with ISO9001 and ISO14001.
Our filters are various with different shapes and materials according to the customer’s specifications and requirements.

Our technical department is ready to develop any new air filter item for residential, commercial and industrial use.


Application: effective for removing a variety range of foul odors and toxic gases.

Type: Air panel filter

Size: customized size and design is available

Efficiency: G3

Final pressure drop: 200 pa (recommend)

DIN 53438 Flammability: F1

UL 900 Standard: class 2

Max. air flow rate:125% of nominal air flow rate

Max. operating temperature: 70°C

Max. relative humidity: 80%

Filter media: activated carbon fiber or activated carbon felt

Frame: moistureproof cardboard, aluminum, galvanized steel, stainless steel

Face guard: aluminum mesh or galvanized steel mesh

Feature: Excellent removal performance of toxic gases, Easy to remove organic Compounds, No peculiar smell and high carbon content


Common Size and Parameter


Model No Dimensions
Rated Air Flow
Initial Pressure Drop
Efficiency Material
Frame Media Face Guard
ACF01 595×595×46 3200 40 G3 cardboard
galvanized steel
stainless steel
activated carbon fiber
activated carbon felt
aluminum mesh
galvanized steel mesh
ACF02 295×495×46 1300
ACF03 595×295×46 1600
ACF04 495×495×46 2200
ACF05 295×295×46 800
