Alpha Clean Air Technology Co.,Ltd

Oil removal Aluminum Foil Panel Air Filters Fume Hood Oil Mist Filter

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 24*24*2"
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
  • Detail Information
  • Product Description

Detail Information

Construction: Panel Filter Efficiency: G3/G4
Medium Material: Aluminum Foil Thickness: 21/25/30/40/46/50/69/76/80/90/96MM
Fucntion: Oil Removal Of Impurities Type: Fume Hood Filter
High Light:

Aluminum Foil Panel Air Filters


G4 Fume Hood Filter


Fume Hood Oil Mist Filter

Product Description

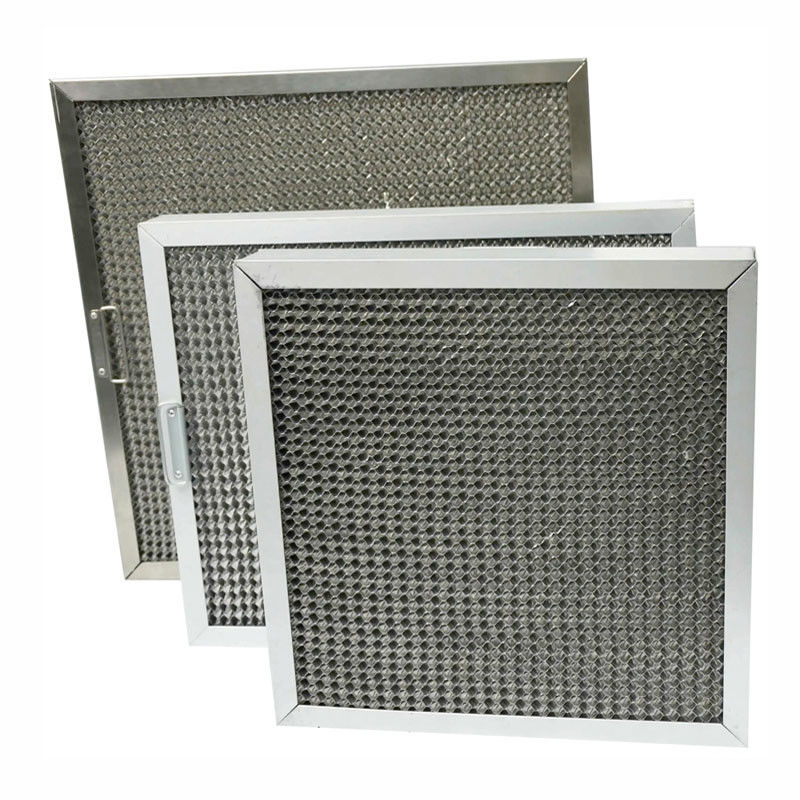

Oil Removal Aluminum Foil Panel Air Filters Fume Hood Oil Mist Filter


Fume Hood Oil Mist Filter Aluminium Range Hood Grease Filter Replacement


The oil fume removal filter is a 50mm-thick plate filter consisting of a honeycomb aluminum core folded into aluminum foil and an aluminum alloy frame. Its overall shape is round and square. The grease collected by the filter is filtered through the oil leakage hole at the corner of the net flows into the oil collecting tank.


Product Features


The metal edge adopts anti-scratch design;


The core adopts S-shaped calendering process to increase the oily fume contact area, while the wind resistance is small;


High oil removal efficiency, achieving 70%-85% of large particles of oil droplets and impurities interception;


Has a fire-stop function, effectively preventing flames from entering the flue;


Sturdy structure, convenient installation and disassembly, low maintenance cost;


customized size is available.


Model Specification Specific surface area(1/ m)
FHF01 254 394 50 680 +- 5%
FHF02 254 495 50 680 +- 5%
FHF03 305 495 50 680 +- 5%
FHF04 381 457 50 680 +- 5%
FHF05 394 495 50 680 +- 5%
FHF06 394 622 50 680 +- 5%
FHF07 455 380 50 680 +- 5%
FHF08 495 395 50 680 +- 5%
FHF09 495 495 50 680 +- 5%
FHF10 495 622 50 680 +- 5%


Oil removal Aluminum Foil Panel Air Filters Fume Hood Oil Mist Filter 0
