Monofilament 0.4mm Printer Copier 210 Mesh Ozone Air Purifier

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: rohs
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: PE bag + carton box
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 10000pcs per week
  • Detail Information
  • Product Description

Detail Information

Name: Air Purifier Replacement Pure Hepa Filter Core Base: Aluminum Alloy Honeycomb
Frame: Paper Or Metal Construction: Flat Panel Filter
Thickness: 8-120mm Type: O3 Ozone Removal Filter
Mesh Numbers: 210 (mesh/inch) Monofilament Diameter: 0.4 Mm
High Light:

210 Mesh Ozone Air Purifier

,

Flat Panel Ozone Removal Filter

,

Monofilament 0.4mm Printer Air Filter

Product Description

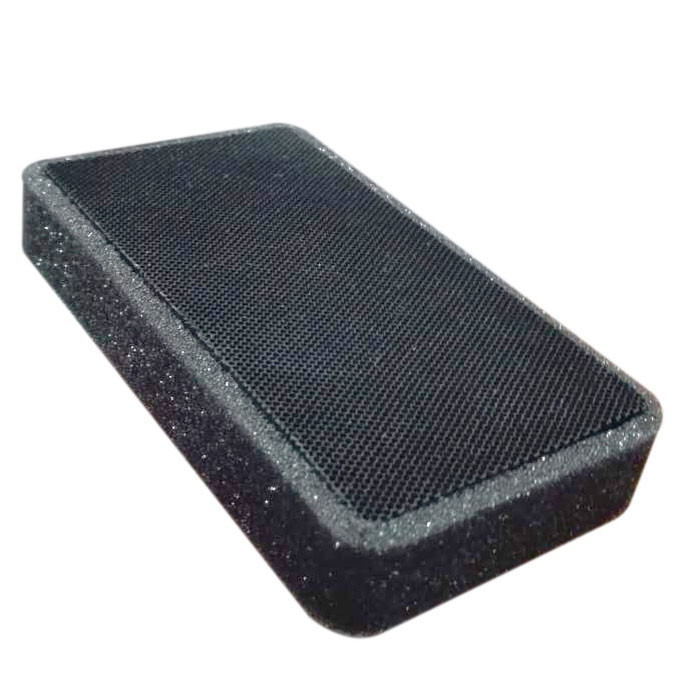

Monofilament 0.4mm Printer Copier 210 Mesh Ozone Air Purifier



Ozone Filter For Printer Copier Medical Equipment Ozone Elimination Module



The ozone decomposition series filter is made by supporting metal catalyst (manganese oxide and rare earth) on honeycomb aluminum and activated by high temperature. When ozone comes into contact with the catalyst, it can instantly be converted into oxygen, which is currently an excellent and rapid method for decomposing ozone.


The hole is regular, so as to obtain a smaller wind resistance;



The high specific surface area of ​​the honeycomb, high-efficiency ozone decomposition can be realized;



Free sample, customized is availabe.


working principle:
1) Decompose ozone O3, reduce it to oxygen O2, and produce no toxic substances;
2) Ozone decomposer is a kind of catalyst. When ozone comes into contact with the catalyst on the surface of the filter, it will accelerate the process of reduction to oxygen.



Specification Product structure Description Common thickness Remark
Holes/sq.inch H(mm) T(mm) A(mm) Specific surface area(1/m) T= mm
400 Monofilament 0.4mm Printer Copier 210 Mesh Ozone Air Purifier 0 2.6 1.2 / 2800 10.0/15.0/20.0 Common
600 2.2 1.0 / 3600 10.0/15.0/20.0 Common
30

Monofilament 0.4mm Printer Copier 210 Mesh Ozone Air Purifier 1
/ / 0.8 2900 10.0/15.0/20.0 common
600 / / 0.6 3800 10.0/15.0/20.0
900 / / 0.5 4600 10.0/15.0/20.0
1200 / / 0.45 5100 10.0/15.0/20.0
