Alpha Clean Air Technology Co.,Ltd

Intelligent Swipe Cleanroom Air Shower

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 200sets
  • Detail Information
  • Product Description

Detail Information

Voltage: 380/220V ,50/60hz Single Or 3phase Dimension(l*w*h): Customized
Material: Stainless Steel Air Shower Time: 0-99s
Type: For 1-2 Persons Door: Electronically Interclock
Blowing Side: Double Side
High Light:

Intelligent Swipe Cleanroom Air Shower


60hz Cleanroom Air Shower


60hz Stainless Steel Air Shower

Product Description

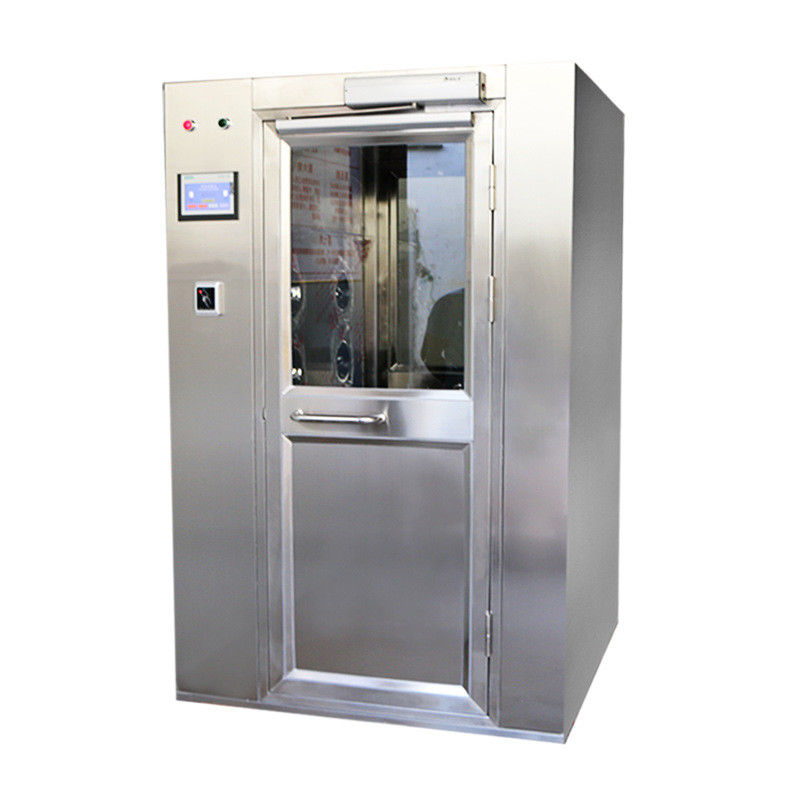

Intelligent Swipe Cleanroom Air Shower


Industrial Clean Room Air Shower Access Control With Intelligent Swipe Open By Card


Air shower is equipment of cleanroom and fabricated small Room,used for blowing off ppl’s and belongs’s carry on dust,as Well as act as air valve


usage,preventing air into the cleanroom without purification which effectively prevent the cleanroom be polluted. The air by the action of fan


though the primary filter access Air to plenum chamber.after though HEPA filter cleaning, by the highly speed blowing though air shower nozzle


which,direction can be adjusted .the blowing off dust was,recycling to the pre filter to achieve ppl and goods and air shower’s indoor self-recycling


clean systems.

Product Main Features:


big screen control panel : smart line siemens PLC control board

intelligent accss controller: swipe open with card to control the people number to enter the cleanroom

door closer: brand famous door closer oubao. with anti-pinch function


press button : no need to swipe your card after get out from air shower.



Specifications FL1R115 FL1R1401 FL2R1402 FL3R1403 FL1800 FL2100
Air shower room size
1150×1000×2050 1400×1000×2050 1400×1600×2050 1400×2000×2050 1800×2000×2050 2100×2000×2050
The showing area size
790×910× 1930 790×910× 1930 790×1530×1930 790×1910× 1930 1200×1910× 1930 1500×1910× 1930
HEPA filter nos 610*610*100 mm 1 pc 610*610*100 mm 2 pcs 610*610*100 mm 2 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs 610*610*100 mm 4 pcs
Nozzle number(pc) 6 12 18 24 24 24
Efficiency 99.99 % 0.3 um (H14)
Wind(m/s) 20~28
Power 3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power(KW) 0.75 1.5 2 2.2 3 4.5
Suitable Numbers 1~2 1~2 3 4 many many
