Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | 24*24*2" |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs |
|
Detail Information |
|||
| Construction: | Panel Filter | Efficiency: | G4 |
|---|---|---|---|
| Medium Material: | Filament Glass Fibres | Thickness: | 10/15/21/25/30/40/46/50/69/76/80/90/96MM |
| Frame: | Aluminum Or Galvanized | Color: | Green And White |
| High Light: | Coalescing Pad Panel Air Filters,Coalescing Pad Filter,Fiberglass Demister Air Filter Pad |
||
Product Description

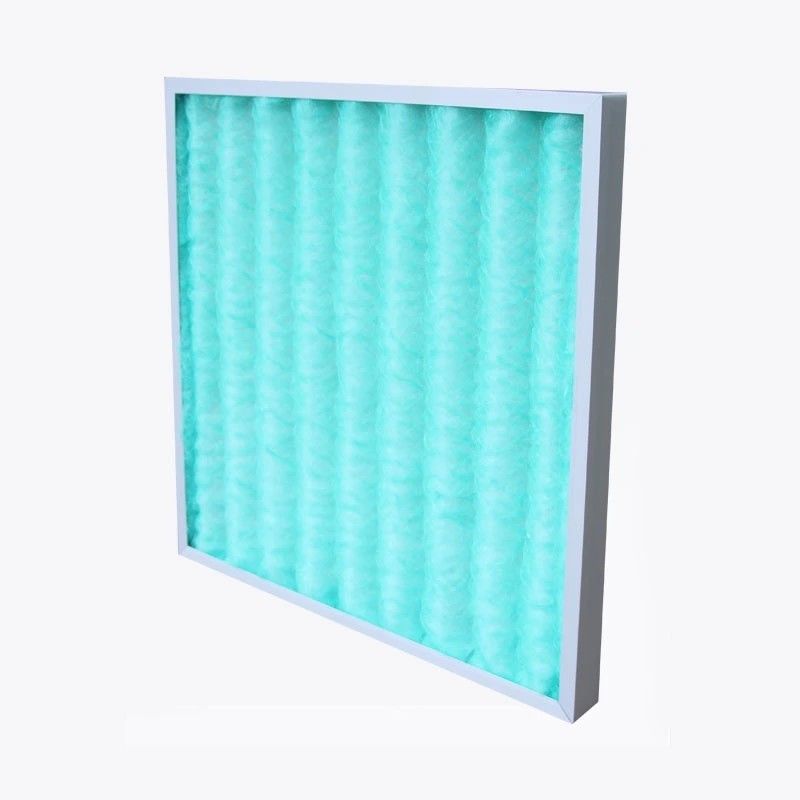

Fiberglass Demister Coalescing Pad Panel Air Filters With Frame
fiberglass demister coalescing pad filter with frame
it is used for the elimination of mist / free moisture from the environment or cauxed by processes in the immedate area of the intake.
they are typically used in coastal areas,behind air washers,and at plant sites that have long periods of heavy rain and / or frequent heavy
fog / mist . the pads can be used in several configuation with increasing degrees of effectiveness.
the pads are also made with an exclusive two stage density ,consisting of an open weave fibre pattern.
on the air entering side and a tighter weave on the air leaving side .this unique construction permits use of the full depth of the pad,thus increasing the amount of water each pad can hold.
the media is supplied in pre cut pads, or we can provided with a metal frame to hold.
there are many types of pre air filter panels
Pre-filtration Class G1 to G4
Ceiling air filter
Dry type spray air filter paper
Floor air filter
Paint paper air filter
Activated carbon panel air filter
Glass fiber panel air filter
Sythetic Fiber Flat Panel air Filter
Washable Pleated Panel Filter pre air filter
Synthetic pleated Panel air Filter
Metal Mesh pre-air filter
Cardboard Panel air Filter
| Model |
Dimensions (mm) |
Air flow (m3/h) |
Model |
Dimensions (mm) |
Air flow (m3/h) |
| CXZ-32J/ JH |
595× 595×46 /22 mm 24"×24"×2"/ 1" |
3200m3/h | CXZ-18J/ JH |
395×495×46 /22 mm 16"×24"×2"/ 1" |
1800m3/h |
| CXZ-27J/ JH |
595×495×46 /22 mm 24"×20"×2"/ 1" |
2700m3/h | CXZ-16J/ JH |
595×295×46 /22 mm 24"×12"×2"/ 1" |
1600m3/h |
| CXZ-22J/ JH |
495× 495×46 /22 mm 20"×20"×2" |
2200m3/h | CXZ-13J/ JH |
495×295×46 /22 mm 20"×12"×2"/ 1" |
1300m3/h |
| CXZ-22J16/ JH |
395× 622×46 /22mm 16"×25"×2"/ 1" |
2200m3/h | CXZ-8J/ JH |
295× 295×46 /22 mm 12"× 12"×2"/ 1" |
800m3/h |
