Alpha Clean Air Technology Co.,Ltd

Non Woven Synthetic Fiber G4 Washable Air Filter Pleated Panels

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 24*24*2"
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
  • Detail Information
  • Product Description

Detail Information

Construction: Panel Filter Efficiency: G3/G4
Medium Material: Synthetic Fiber Thickness: 21/25/30/40/46/50/69/76/80/90/96MM
Frame: Aluminum Or Galvanized Color: Green And White
High Light:

G4 Washable Air Filter


Synthetic Fiber G4 Air Filter


G3 Washable Air Filter

Product Description

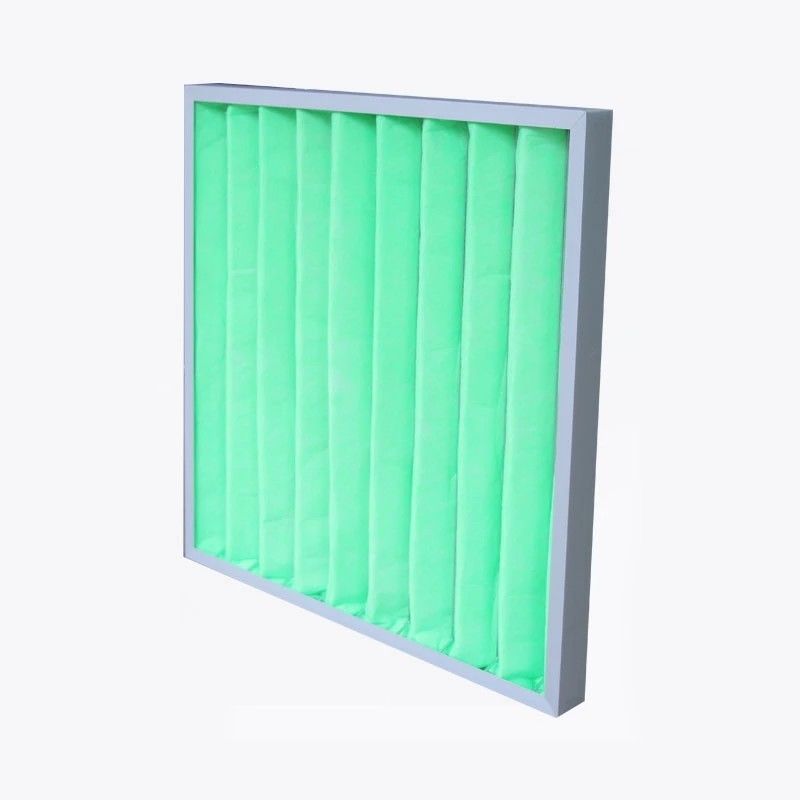

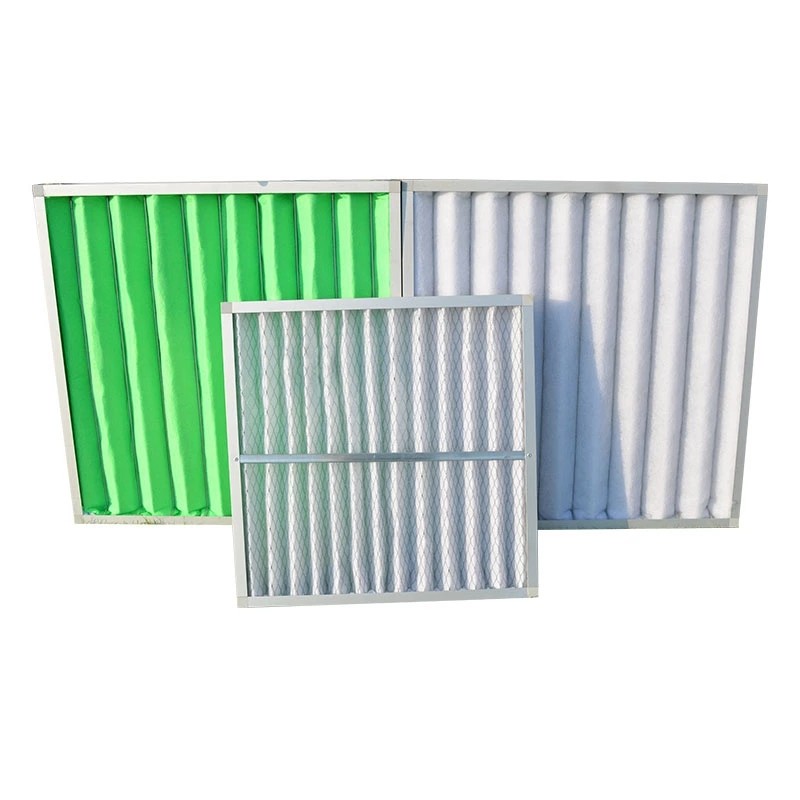

Non Woven Synthetic Fiber G4 Washable Air Filter Pleated Panels


G4 Pleated air filter panels non-woven fabric whashable air filter


Pre filtration in air conditioning or industrial processing systems.prevent of dust and dirt built up on treating /  coolings

coils within ventilation system.
It has been broadly used in various industries, to include electronics, electric appliances, aviation and aerospace, automobiles, pharmaceuticals, biological engineering, environmental protection, telecommunication, banks, intelligent buildings, hotels, restaurants, etc.


Mainly used to filter dust particles above 5 microns. The primary filter has plate, fold pleated, and bag styles. The outer frame has paper frame, aluminum frame, galvanized plate frame, and the filter material has non-woven fabric, nylon mesh, Activated carbon material, metal mesh


there are many types of pre air filter panels


Pre-filtration Class G1 to G4
Ceiling air filter
Dry type spray air filter paper
Floor air filter
Paint paper air filter
Activated carbon panel air filter
Glass fiber panel air filter
Sythetic Fiber Flat Panel air Filter
Washable Pleated Panel Filter pre air filter
Synthetic pleated Panel air Filter
Metal Mesh pre-air filter
Cardboard Panel air Filter






Air flow





Air flow



595× 595×46 /22 mm

24"×24"×2"/ 1"

3200m3/h CXZ-18J/ JH

395×495×46 /22 mm

16"×24"×2"/ 1"


595×495×46 /22 mm

24"×20"×2"/ 1"

2700m3/h CXZ-16J/ JH

595×295×46 /22 mm

24"×12"×2"/ 1"


495× 495×46 /22 mm


2200m3/h CXZ-13J/ JH

495×295×46 /22 mm

20"×12"×2"/ 1"

CXZ-22J16/ JH

395× 622×46 /22mm

16"×25"×2"/ 1"

2200m3/h CXZ-8J/ JH

295× 295×46 /22 mm

12"× 12"×2"/ 1"
