Double Paned Cleanroom Window

Product Details:
Place of Origin: china
Brand Name: alphaclean
Model Number: 400*600
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000pcs
  • Detail Information
  • Product Description

Detail Information

Product Name: Double-Paned Cleanroom Window/View Panel/Sight Window/View Window Features: Flush Mounted On The Wall
Size: 400*600 Or Custom Material: Hollow Glasses,SUS304 Stainless Steel For Window Frame
Function: Reduce Noise Application: Hotel, Villa, Apartment, Office Building, Hospital
High Light:

Double Paned Cleanroom Window

,

SUS304 Frame Cleanroom Window

,

Thick 75mm Cleanroom View Window

Product Description

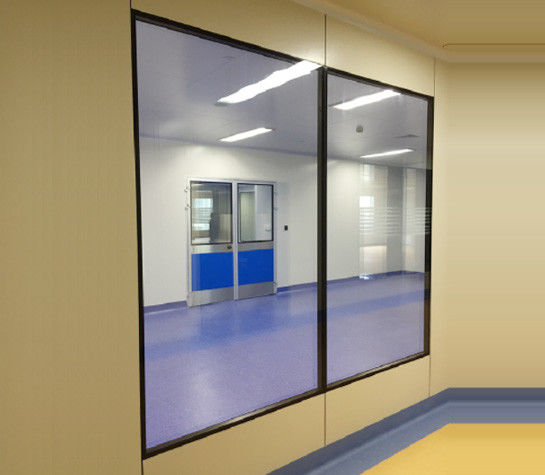

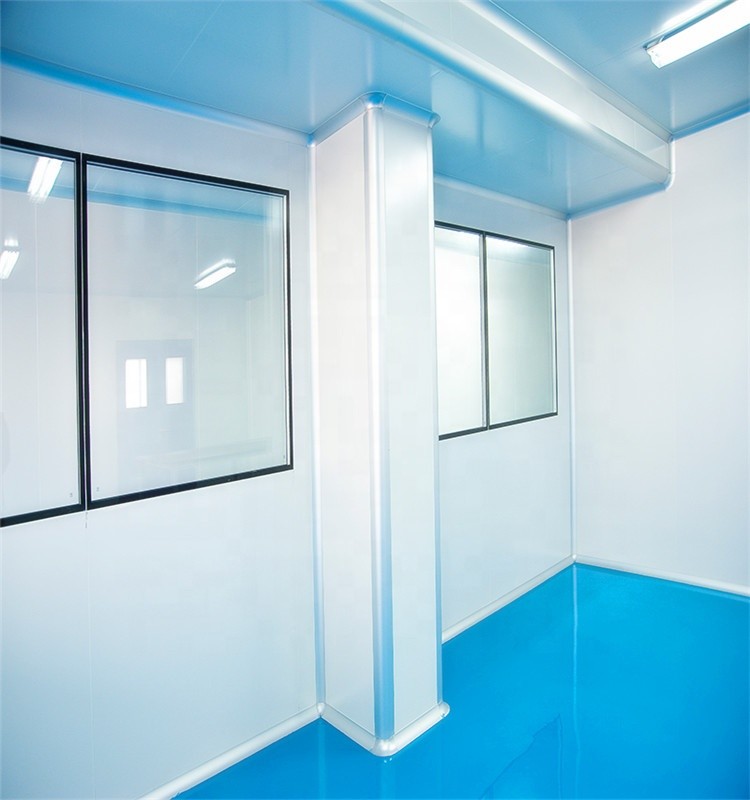

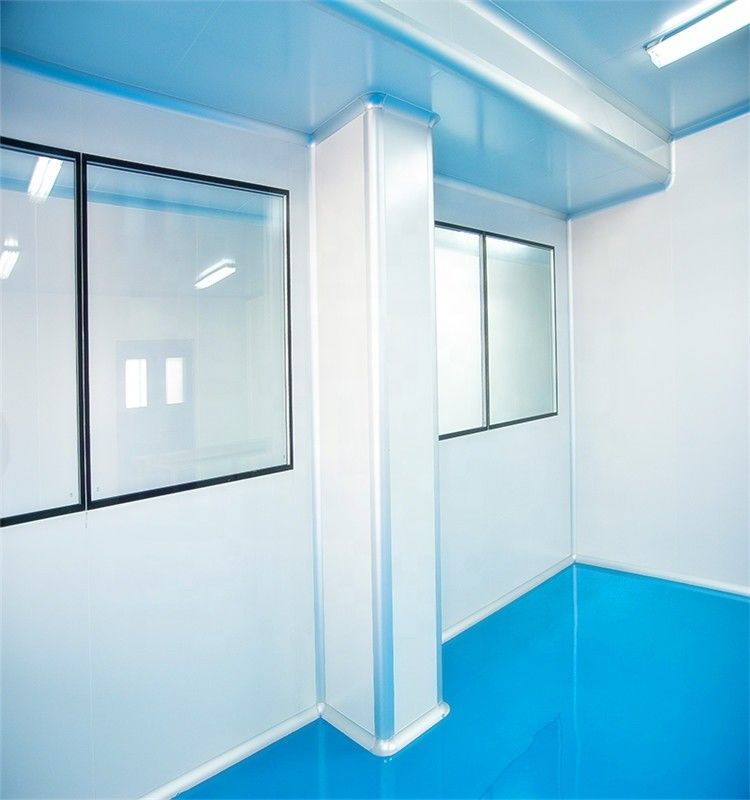

Double Paned Cleanroom Window



Double-Paned Cleanroom Window/View Panel/Sight Window/View Window



FEATURES:
Flush mounted on the wall

the wall and the window are in the same plane, and the installation is flexible and beautiful. It can be made according to the thickness of different walls, especially suitable for 50~100mm thick color panel.

Sound insulation:
generally hollow glass can reduce noise by about 30 decibels,
and insulating glass filled with inert gas can be reduced by about 5 decibels on the original basis, 80 decibel noise is reduced to 45 decibels and is extremely quiet.

hollow glasses with good thermal insulation performance

Anti-frosting:
In the environment with large temperature difference between indoor and outdoor in winter, frosting will occur on single-layer glass doors and windows, the use of insulating glass has no frosting.



Width

982,1182,2370mm

Thickness

50, 75, 100mm ;to sandwich panel’s thickness

Frame

screen print black or white ,width 20-25mm

Material

aluminum alloy, SUS304 stainless steel for window frame; 5mm tempered glass

Infill

Dry agent, N2 nitrogen

Shape

Right angle/round angle /right angled outside and round inside

Connection

“+” aluminum to manual sandwich panel

Note: The dimension of clean room window can be customized according to requirements.



Features: Beautiful appearance, no aluminium alloy frame can be seen on the surface, glass flush with sandwich panel, concise, beautiful, the first choice for partition wall project of hand made sandwich panel.
