Ceiling FFU Fan Filter Unit

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: 4*2 feet
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 2000sets
  • Detail Information
  • Product Description

Detail Information

Frame: Galvalume Air Flow: 2000 M3/h
Warranty: 1 Year Hepa Filter: 99.99% 0.3 Um
Name: Group Control FFU Filter Fan Unit Air Speed: 0.45 M/s
Size: 1175* 1175 *400mm Cleanliness: Class 100
High Light:

Ceiling FFU Fan Filter Unit

,

Air Flow FFU Fan Filter Unit

,

Galvalume Filter Fan Unit

Product Description

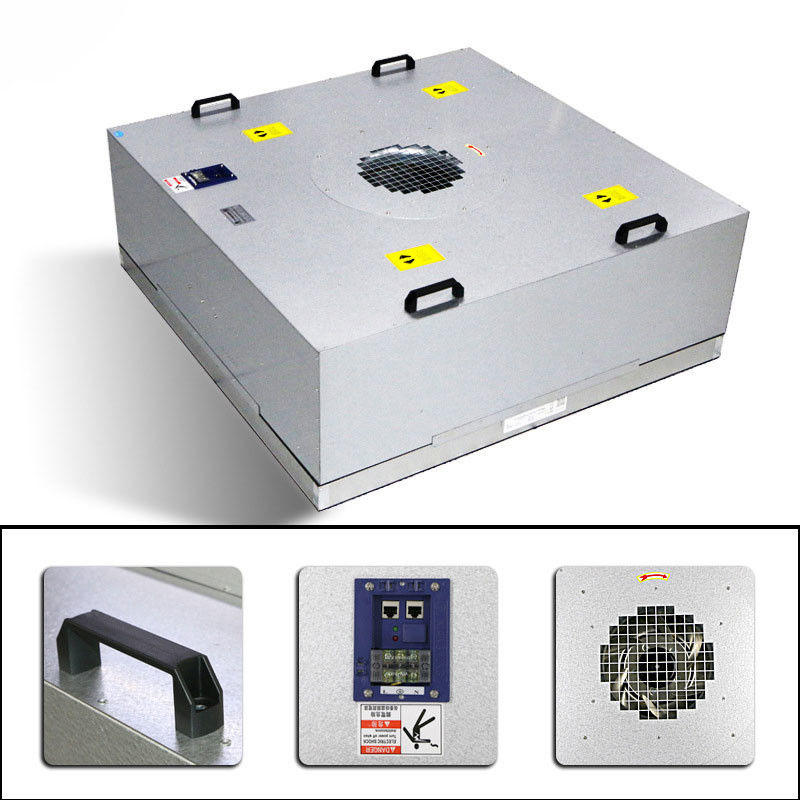

Ceiling FFU Fan Filter Unit



Remote Control Terminal Ceiling Filter Fan Units With Large Air Flow



1. The control system is easy to operate and can monitor FFU on the computer, with strong anti-interference and low construction cost

2. The system uses Modbus communication protocol, based on RS485 bus design, four levels of control, the system can control up to 65,280 units of FFU, according to the customer site FFU layout diagram for programming control interface

3. Working power supply: AC220V single-phase 50Hz

4. Control function: single or group FFU can be realized on the controller

5, monitoring function: can monitor single or group FFUs  a, running state b, failure state on the controller



Technical Parameter:

 MODEL

FFU-1175S2

External size (mm)
(WXDXH)

1175X1175X350mm

 Material

Steel plate with painting/galvanized steel/aluminum/stainless steel

 Air flow(m3/h)

2400m3/h

Air velocity (m/s)

  0.3/0.35/0.4/0.45/0.5m/s

Fan Pressure(pa)

    97(10mmAq)

Control system

1: Power on/off   2: Control air speed up/down

HEPA FILTER

Size(mm)

1175x1175x69mm

Efficiency(%)

         99.995% @ 0.3um

Pressure (pa)

<220pa @ 0.45m/s

 Power supply

     220V/110V ,50/60HZ

Power (w)

   160

     Noise (Db)

      52-58 dbA



AC 220V 50 HZ FFU / BFU  Intake Fan Filter Assembly For Clean Room 0



































  • Suitable for Class 1-1000 clean room
  • Simple and light design,low height ,which can save space and is easily for installation and daily maintenance.
  • Unique inlet air channel ,Low vibration and noise
  • Uniform and steady air flow
  • High efficiency motor ,3 gear control ,low current consumption and electricity saving



Model
Parameters
FFU-1175S FFU-57S FFU-87S FFU-1175S2 FFU-725S
FFU-1175Z FFU-57Z FFU-87Z FFU-1175Z2 FFU-725Z
Nominal Volume (m3/h) 1080 530 1650 2200 1700
Noise Db(A) 48-54 dbA 48-54dbA 50-56dbA 52-58dbA 50-56dbA
Hepa filter efficiency ≥99.99% ~ 99.9995%( @≥0.3μm)
Power AC220V/110V±10%,single phase ,50Hz~60HZ
The Out Power (W) 150 150 190 255 190
Casing size L*W*H(mm) 1175*575*277 575*575*262 875*1175*350 1175*1175*350 725*1475*345
Hepa Filter (mm) 1170*575*70 575*575*70 875*1175*70 1170*1170*70 720*1470*70
Pre Filters (mm) as required
power AC 110 or 220 50 Hz or 60 Hz single phase
speed control three speed control (manual or computer group control)
operative mode the power indicator switch operation and failure indicator
overload protection Double overload protection with motor and controller switch
power access socket or terminal block
