Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Certification: | ce |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 10 days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Product Name: | Clean Down Flow Booth With Hepa Filter | Material: | Alluminum Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Clean Level: | ISO5 - 8 |
| FFU Nos.: | As Designed | Wall Material: | Plexiglass,acrylic And Pvc |
| Type: | Class 100 -10000 Clean Room | Door: | Soft PVC Curtain Etc. |
| Highlight: | Plexiglass Cleanroom Booth,Plexiglass Down Flow Booth,ISO5 Cleanroom Booth |
||
Product Description

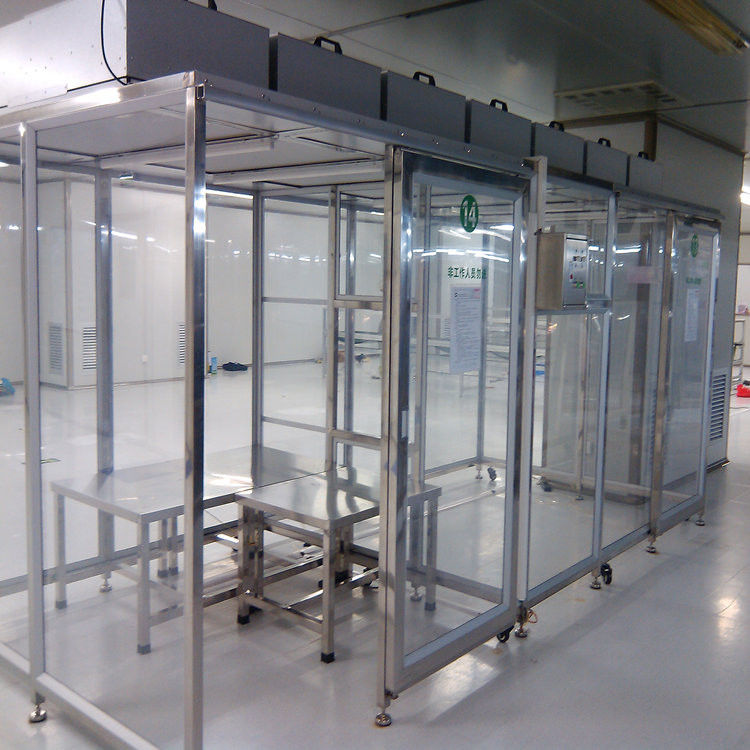

Plexiglass Cleanroom Booth
Stainless Steel Movable Handwall Cleanroom Hood With Plexiglasses
The fans of Clean Booth press the air in HEPA Air Filters with regular wind pressure, after passing through HEPA Air Filters, vertical and unidirectional airflow is well distributed to the work area, which ensures the high cleanlines.
Features
1. Frame structure, easy for mounting and can be dismounted again.
2. Move easily(rotary wheel available)
3. Modular structure at the top, FFU quantity can be adjustable to improve inside cleanness of the clean booth, and also can be recycled.
4. It is large useful and effective area,while compared with traditional clean room,low investment,high return and stable
5. quick production time and installation in short period
Material
1. Bracket: special aluminum profile, iron square pass or stainless steel square pass
2. Anti-static curtain: 0.3mm thick grid, good anti-static effect, high vertical, clear grid, soft, good toughness, no deformation, not easy to age: temperature insulation, good dust and static resistance.
3. Anti-static glass plate: good anti-static effect, high length, not easy to age, suitable for high-demand occasions.
4. Clean roof sealing board: The clean blind board can use 0.3mm anti-static curtain, 4.0mm thick aluminum-plastic plate, 1.0mm aluminum plate or cold plate paint.
5. Purification lighting system can be used in the clean shed.
6. Fan filter air supply unit FFU: adopts low-noise centrifugal fan, with long life, low noise, maintenance-free, low vibration and adjustable speed. Among them, a high efficiency filter (HEPA) is installed at the end of the fan unit. HEPA has the characteristics of small initial penetration, large dust holding capacity, high filtration efficiency, long replacement and replacement.
| TYPE | SOFTWALL CLEAN BOOTH | HARDWALL CLEAN BOOTH |
| Wall Material | Anti-static soft PVC wall curtain 106~109Ω | Anti-static acrylic 106~109Ω |
| Cleanliness | From Class 100 to Class 10,000 | |
| Frame Material | Coated steel, anodized aluminum, Stainless Steel | |
| FFU | 2'X4' Galvalume in standard size ,110/220v AC 50/60 hz | |
| HEPA Filter | H14 Hepa filter 99.997% 0.3micro | |
| Lighting | Available in LED and T5 | |
| Air condition |
For your requirement, Available in constant temperature air conditioner /constant temperature and humidity conditioner |
|
CLEANLINESS CLASS LEVEL
| ISO Class | Fed 208 | Controls | HEPA filter coverage as % of ceiling | Air velocity at table level in FPM | Air changes rate per hour |
| 1 | - | Stringent | 100 | ||
| 2 | - | Stringent | 100 | 70 - 130 | ＞ 750 |
| 3 | 1 | Stringent | 100 | 70 - 130 | ＞ 750 |
| 4 | 10 | Stringent | 100 | 70 – 110 | 500 - 600 |
| 5 | 100 | Stringent | 100 | 70 - 90 | 150 - 400 |
| 6 | 1,000 | Intermediate | 33-40 | 25 - 40 | 60 - 100 |
| 7 | 10,000 | Intermediate | 10-15 | 10 - 15 | 25 - 40 |
| 8 | 100,000 | Less stringent | 05-10 | 3 - 5 | 10 - 15 |
