Product Details:
|
|
| Place of Origin: | china |
|---|---|
| Brand Name: | alphaclean |
| Model Number: | customized |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | Polywood packing |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000sets |
|
Detail Information |
|||
| HEPA Filter: | Mini Pleat HEPA Filter | Material: | Cold Rolled Steel Coated Casing |
|---|---|---|---|
| Diffusing Plate: | Stainless Steel | Air Volume: | 1000 M3/h |
| Air Supply Duct: | Top Or Side | Air Valve: | No |
| High Light: | Mini Pleat HEPA Filter Boxes,Pharmaceutical Terminal HEPA Filter Box,Mini Pleat HEPA Filter Cassette |
||
Product Description

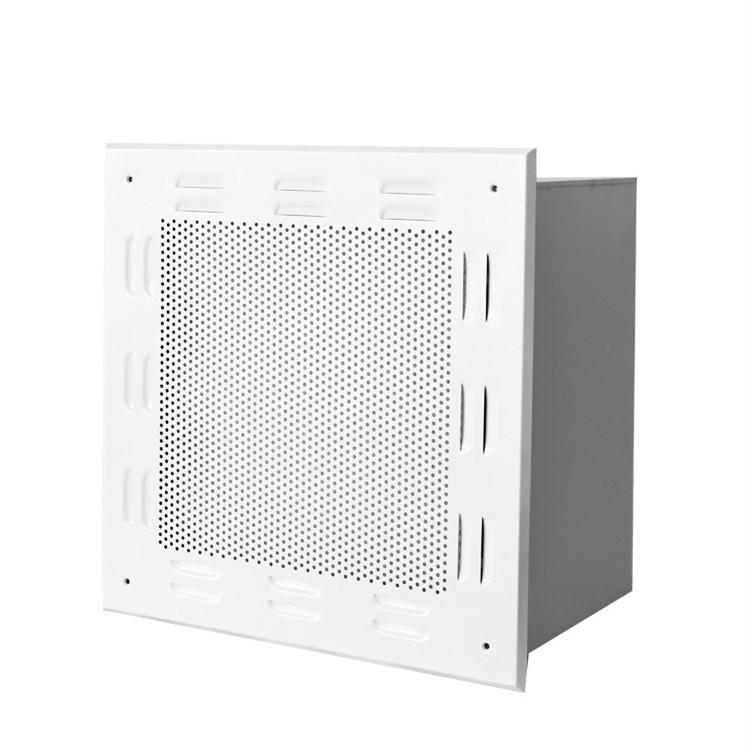

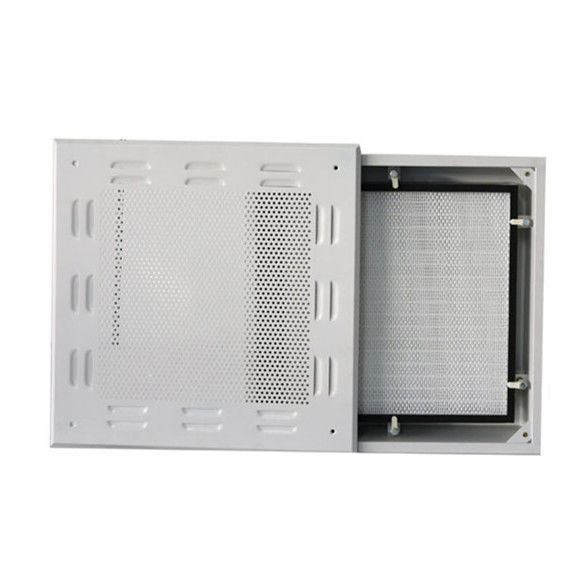

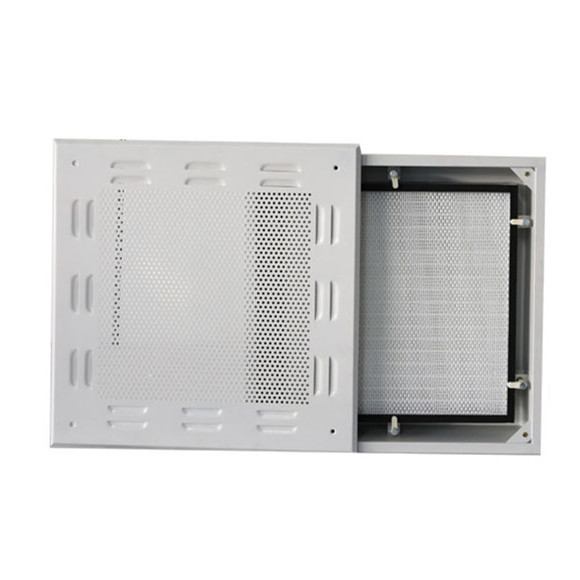

Mini Pleat HEPA Filter Boxes
HEPA Filter Box For Phamaceutical Terminal Air Supply Unit
Application :
Applied to the end filtration of high civilian or industrial clean site for cleanliness.such as: Electronics,semiconductor, precision machinery, pharmaceutical, hospital, food and other industries.
The box body is made of high quality cold rolled steel sheet.
Surface electrostatic spraying
Beautiful and generous, compact structure, easy to install and maintain
The diffuser panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.
|
Type for optional |
Mini pleat HEPA filter HBM Gel seal HEPA filter HBG pressure test hole HBP aerosol test hole HBA down regulating damper HBD
|
||
| Model |
Air flow ( m3/h ) |
Mini pleat HEPA filter W * H * D ( mm ) |
Box size W * H * D ( mm ) |
| HBM-320 | 300 - 450 | 320 * 320 * 96 | 390*390*380 |
| HBM-484 | 600 – 1000 | 484 * 484 * 96 | 554*554*380 |
| HBM-630 | 1000 – 1500 | 630 * 630 * 96 | 700*700*380 |
| HBM-915 | 2000 | 915 * 610 * 96 | 985*680*380 |
| HBM-1220 | 3000 | 1220 * 610 * 96 | 1290*680*380 |
