Alpha Clean Air Technology Co.,Ltd

AC 220V Cleanroom Booth

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: dispensing booth
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden pallet packing
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Product Name: Weighing Booth Type: Laminar Flow Clean Booth
Power Supply: AC 220V Single Phase 50 Hz Atmospheric Pressure: 86 KPa - 106 KPa
Material: Full Stainless Steel Air Flow: 0.4 - 0.7 M/s Ajustable
Filter Effciency: HEPA ,medium And Pre Filter Cleanliness Class: Class A/ Class 100 / ISO 5
High Light:

AC 220V Cleanroom Booth


106 kPa AC 220V Cleanroom Booth


AC 220V Pharmaceutical Weighing Booth

Product Description

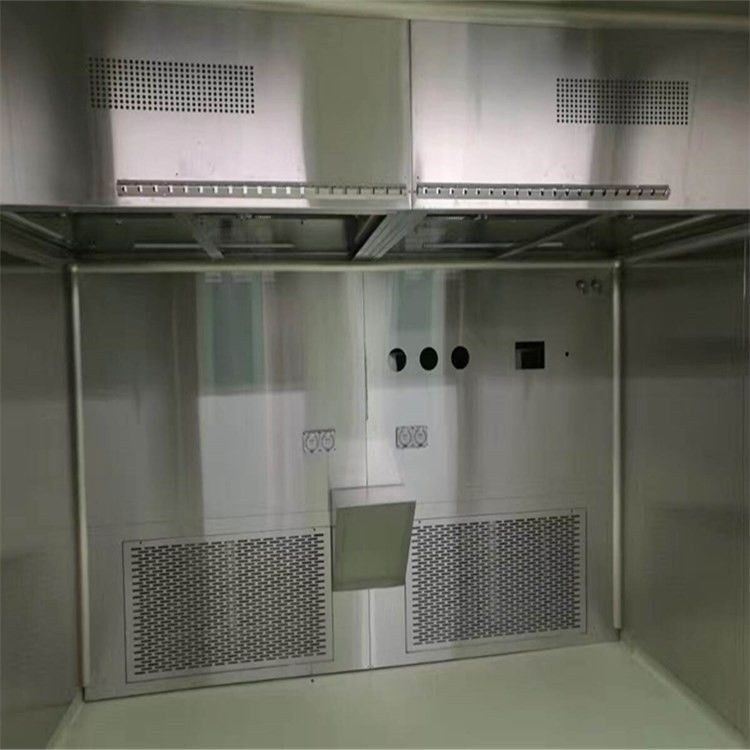

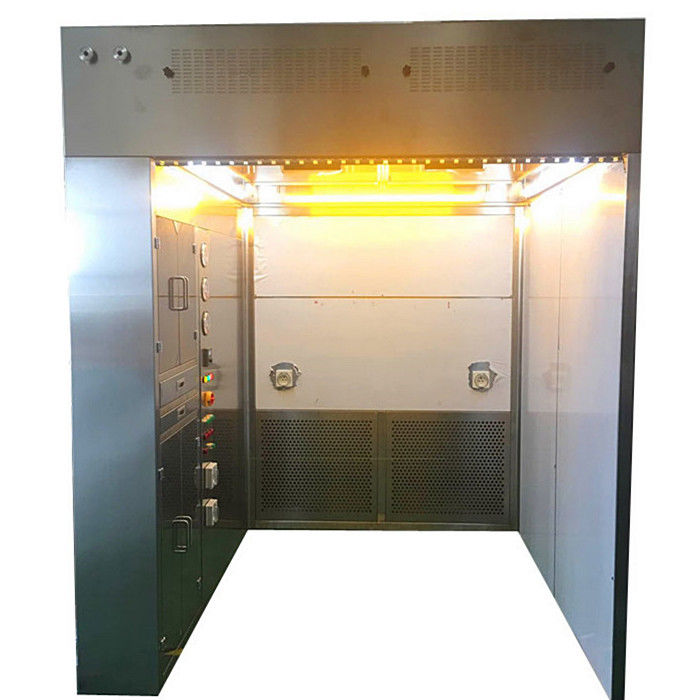

AC 220V Cleanroom Booth


Pharmaceutical Weighing Hood With Differential Pressure Gauge


 Weighing Booth also know as laminar flow booth, dispensing booth is for the pharmaceutical, microbiological research and scientific experiments and other places dedicated local purification equipment, which provides a vertical unidirectional airflow, some clean air circulation in the work area, partly discharged to the nearby area, so that the work area produce negative pressure to prevent cross contamination in order to ensure the high clean class level of the working area.



1) Filter: three-stage filtration of primary, middle and high-efficiency HEPA filters, blue jelly gel sealed high-efficiency filters (efficiency: 99.99%~99.999%@0.3μm), which can meet the test requirements of DOP or PAO;


2) Differential pressure gauge: local made or optional


3) Polymer flow film: significantly improve the uniformity of wind speed on the air outlet;


4) Control part: the frequency converter adjusts the wind speed and speed, and the button controls the lighting, power supply and emergency stop;


5) Illumination: The average illuminance on a plane one meter away from the ground in the weighing room is greater than 300Lux,


6) Weighing platform: for placing electronic balance and filling in records (optional)


7) Socket: equipped with waterproof and dustproof socket, grade: IP66. The quantity is configured according to customer needs.


Main Features

Unique designed air duct effectively controls the noise.

Smooth transitions of wall and ground can eliminate the blind angle.


Differential pressure gauge is equipped to real-time monitor the filters.


Intelligent control mode and alarm system ensure the reliability of running.


Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.


Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.


Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.


Parameter RFB-1300 RFB-1700 RFB-2400
Cleanliness level Class 1000@≥0.5um(FED STD 209E)
Number of colonies ≤0.5pcs/ dish.(φ90㎜culture plate)
Average air flow 0.3~0.6m/s(adjustable)
Noise ≤68dB
Vibration half peak ≤5μm
Illuminance ≥300Lx
Power supply AC/220V/50Hz
Air supply 2500m3/h(adjustable) 3600m3/h(adjustable) 5000m3/h(adjustable)
Air exhaust 750m3/h(adjustable) 1080m3/h(adjustable) 1500m3/h(adjustable)
Total air volume 2500m3/h(adjustable) 3600m3/h(adjustable) 5000m3/h(adjustable)
Max consumption ≤0.75kW ≤1.5kW ≤1.5kW
weight ~250kg ~300kg ~400kg

Out size(mm)


1300×1300×2300 1700×1700×2300 2400×1800×2300

Working size(mm)


1200×800×2000 1600×1200×2000 2300×1300×2000
3 stage filtration G4/F7/H14 G4/F7/H14 G4/F7/H14
