Mechanical Static Cleanroom Pass Boxes

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 1000sets
  • Detail Information
  • Product Description

Detail Information

Function: Clean Room Transfer Interlock: Electrical/Mechanical
Type: Cold Rolled Steel Coated White Internal Size: 600x600x600
UV LIGHT: As Request Illumination: ≥ 300 Lx
High Light:

Mechanical Static Cleanroom Pass Boxes


Germicidal Lamp Cleanroom Pass Boxes


SS304 Pass Thru Box

Product Description

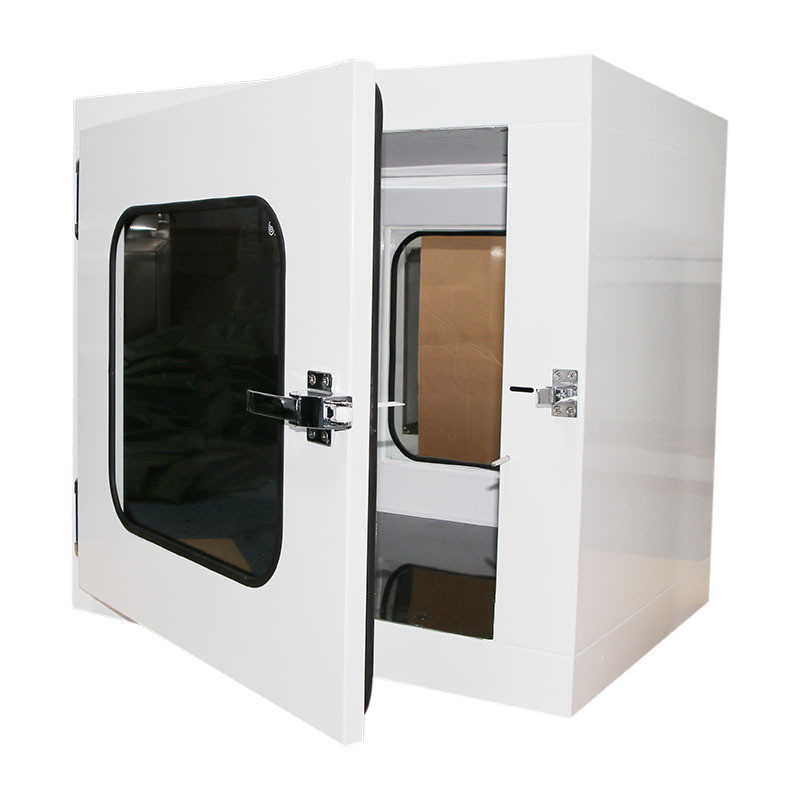

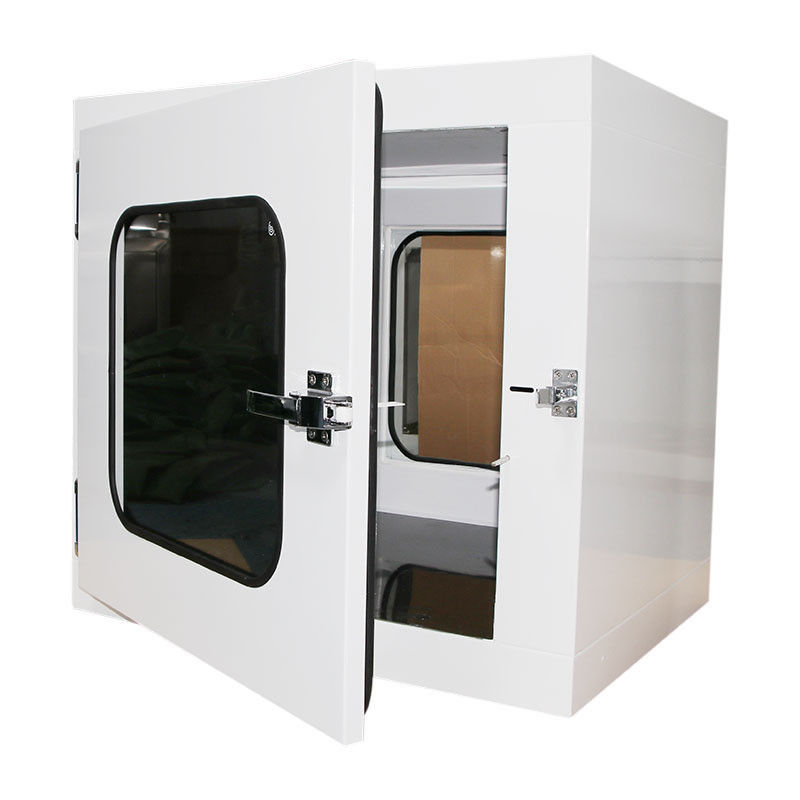

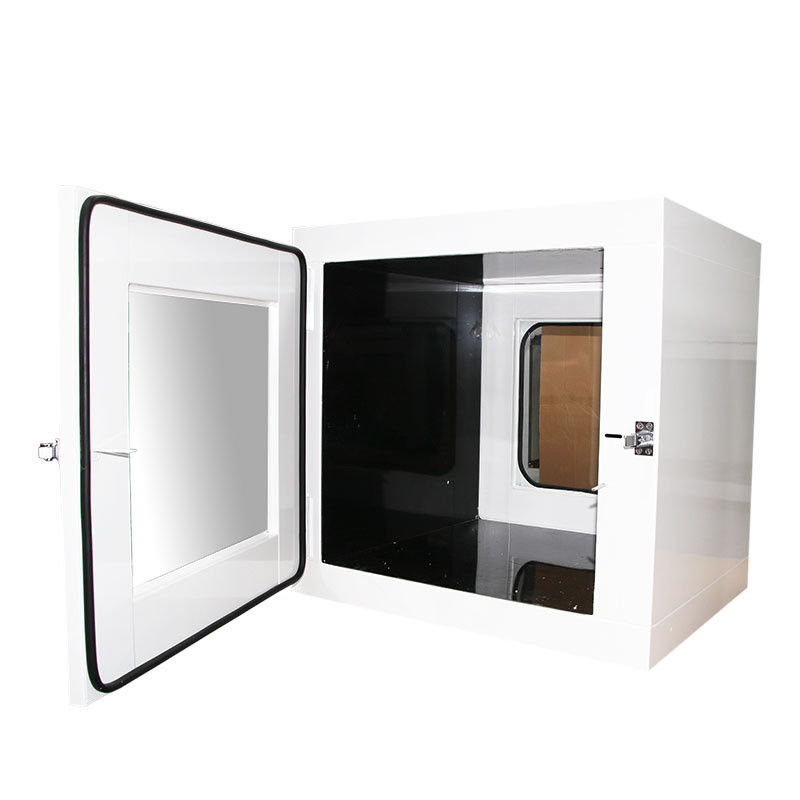

Mechanical Static Cleanroom Pass Boxes


Machanical Static Clean Room Pass Box Biological Pharmacy Laboratory Cabinet


Pass Box is general auxiliary equipment for cleanroom,mainly in the usage of clean between clean zone or the unclean and clean areas small items transmission, in order to reduce clean room door’s opening times, minimize the pollution


Frame :powder coated cold rolled steel or stainless steel

Internal: stainless steel

Interlock : mechanical or electrical (side door cannot Open at one time )

Optional: Alternative frame materials and size available on request.

Our equipment is warranty for 1 year excluding consumable parts and accessories.


Specifications pb-1C pb-2C
( L×W×H)mm overall dimension 700×400×600 800×600×700
(L×W×H)mm Internal dimensions 500×400×500 600×600×600


1. Cleanliness in the laminar flow pass box: Class A;

Embedded ultraviolet germicidal lamp on top

2. The internal circular plate chamfering processing, no dead angle

3. Using laminar flow design, the airflow direction adopts the upper-feed-down mode, and the bottom adopts the 304 stainless steel cold-rolled plate punching design, and with the reinforcing rib support;

4. Filter: PRE filter G4, and HEPA Filter H14;

5. Wind speed: 0.36-0.54m/s (tested at 150mm under the high-efficiency airflow equalizer board);

6. Differential pressure function: display filter pressure difference (range high efficiency 0-500Pa / medium efficiency 0-250Pa), accuracy ± 5Pa;

7. Control function: fan start/stop button, configure built-in electronic door interlock; set UV lamp, design separate switch;

8. Set the inspection port at the lower part of the pass box for maintenance of the fan;

9. Noise: <65db;

10. high efficiency airflow equalizer board: 304 stainless steel mesh board.
