Detail Information
Voltage:	380/220V ,50/60hz Single Or 3phase	Dimension(lwh):	Customized
Material:	Cold Rolled Steel With White Coated	Air Shower Time:	0-99s
Type:	For 1 - 2 Persons	Door:	Electronic Interclock
Blowing Side:	Double Side	Warranty:	1 Year
HS CODE:	9406900090	Power(w):	750W
High Light:	220V Cleanroom Air Shower , HEPA Filter Cleanroom Air Shower , 750W Air Shower Room

Product Description

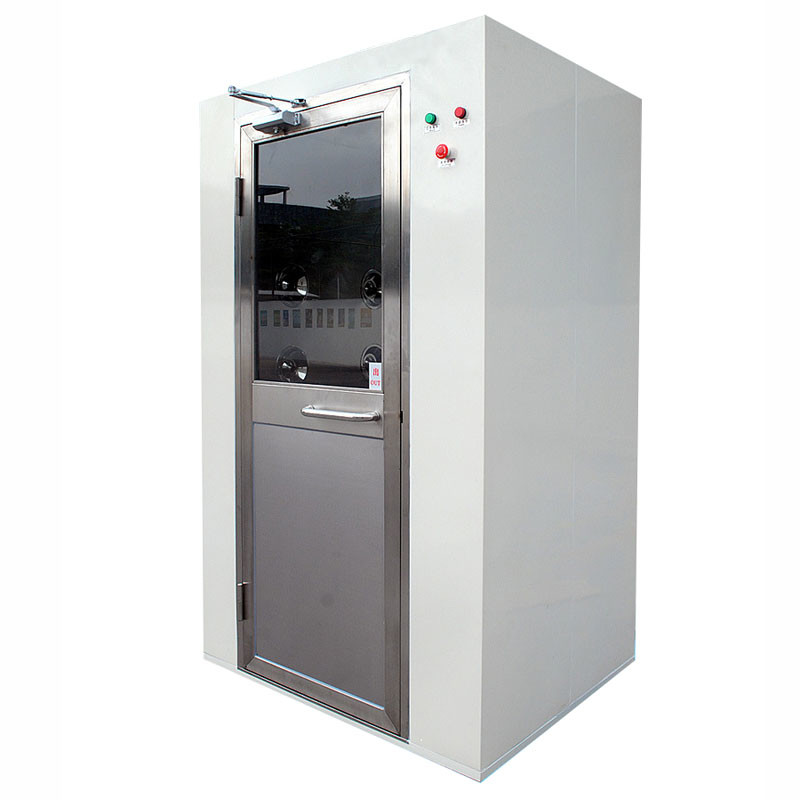

220V Cleanroom Air Shower

Standard cold rolled steel plate cleanroom air shower unit with HEPA filter

Working steps:

The staff enter to the air shower room, the front door is automatically opened → the personnel enters the air shower room, the front door is

automatically closed → the air shower automatically starts the blowing mode → after the set blowing time is reached, the back door is

automatically opened → the personnel walks out of the air shower room, and the back door automatically shut down.

Main characters

Photoelectric sensor, automatic blow

Electronically interlocked with double stainless door

Stainless nozzles

Audio system

With Auto, Stop, Manual, Emergency Stop function keys

An Emergency Stop push button: will override the operating cycle to release the door locks immediately

Custom sizes are possible

Feature :

Applicable Number of People:1 person

Materials: All Full Set Stainless SUS304 or coated cold rolled steel

Number of Nozzle:12(Two Sides) Stainless Steel 304

Mouth Diameter of Nozzle:Φ30mm

Control panel:sus304 frame,LCD display, PLC control system

Speed of Air Flow at the Nozzle:>28m/s

Lock:Electronic Interlock,two door can't open at the same time.

Pre-Filter:600*350*10(mm),2PCs,synthetic fiber with aluminum

HEPA Filter:2PCs,600*600*100(mm),

FAN:2PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa

LAMP:1PCs LED light,Power:1*7W.

Shower Time:0-99s adjustment

HEPA Filter Efficiency:H13,99.995%@0.38um.

Maximum Power Consumption:1.1KW

Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage

Optional parts:

Infrared sensor auto sliding door, or with double paned viewing glasses window

No base plate, it is easy for truck / cart to pass though

Yellow fluorescent lamp / UV lamp / Emergency switch

Anti-static system

Specifications	FL1R115	FL1R1401	FL2R1402	FL3R1403	FL1800	FL2100
L×W×H(mm) Air shower room size	1150×1000×2050	1400×1000×2050	1400×1600×2050	1400×2000×2050	1800×2000×2050	2100×2000×2050
L×W×H(mm) The showing area size	790×910× 1930	790×910× 1930	790×1530×1930	790×1910× 1930	1200×1910× 1930	1500×1910× 1930
HEPA filter nos	610610100 mm 1 pc	610610100 mm 2 pcs	610610100 mm 2 pcs	610610100 mm 4 pcs	610610100 mm 4 pcs	610610100 mm 4 pcs
Nozzle number(pc)	6	12	18	24	24	24
Efficiency	99.99 % 0.3 um (H14)
Wind(m/s)	20~28
Power	3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc )
Power(KW)	0.75	1.5	2	2.2	3	4.5
Suitable Numbers	1~2	1~2	3	4	many	many
