Detail Information |
|||
Voltage: | 380/220V ,50/60hz Single Or 3phase | Dimension(l*w*h): | Customized |
---|---|---|---|
Material: | Stainless Steel | Air Shower Time: | 0-99s |
Type: | For 1 - 2 Persons | Door: | Electronic Interclock |
Blowing Side: | Double Side | Warranty: | 1 Year |
High Light: | SUS304 Cleanroom Air Shower,AC 380V Cleanroom Air Shower,SUS304 Air Shower Unit |
Product Description

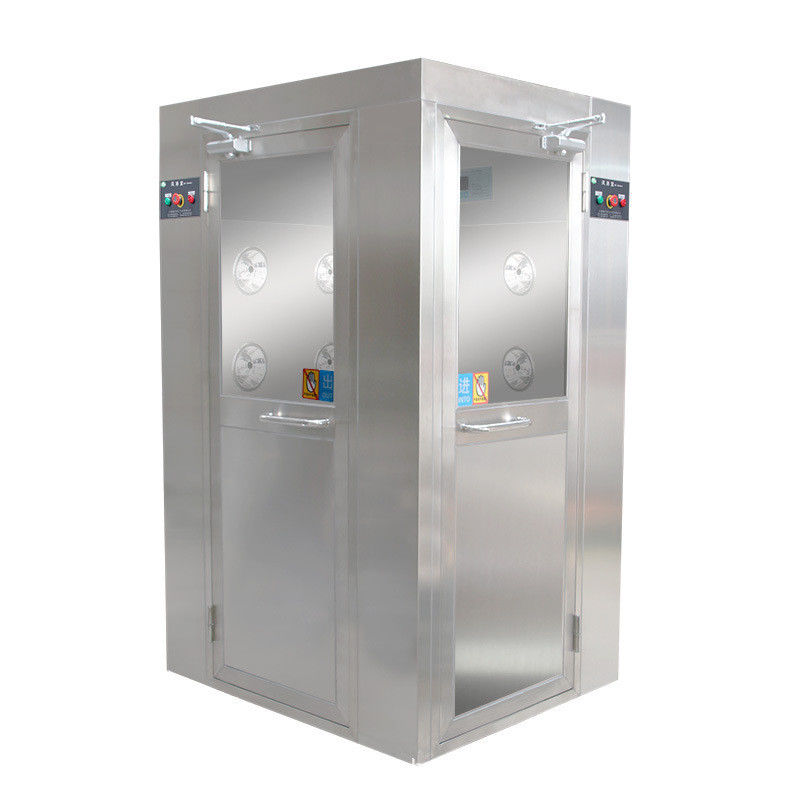

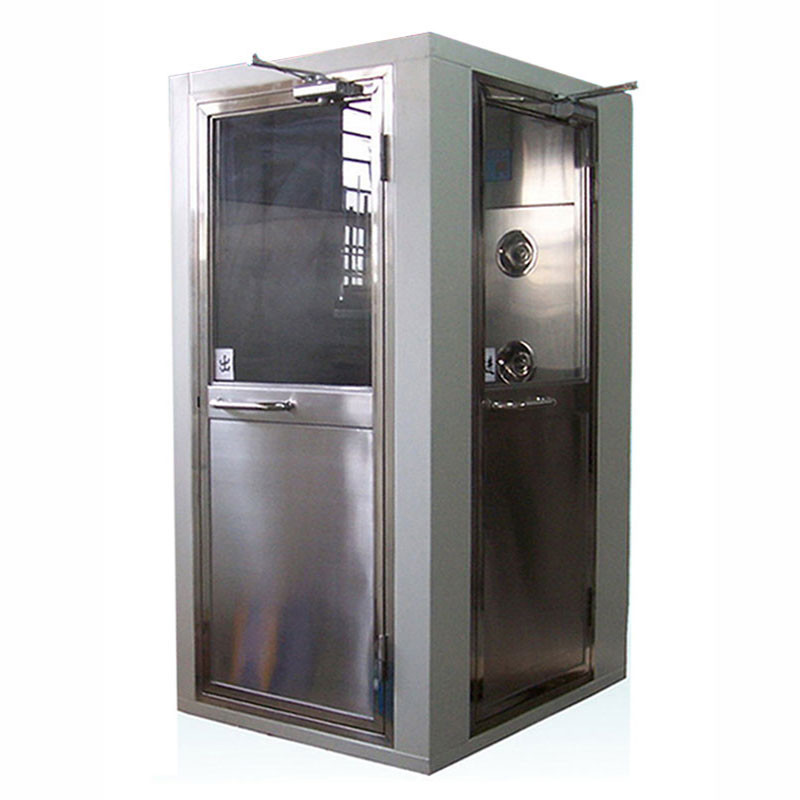

SUS304 Cleanroom Air Shower
SUS L Turn Angle Corner Cleanroom Air Shower Customized
Working steps:
The staff enter to the air shower room, the front door is automatically opened → the personnel enters the air shower room, the front door is
automatically closed → the air shower automatically starts the blowing mode → after the set blowing time is reached, the back door is
automatically opened → the personnel walks out of the air shower room, and the back door automatically shut down.
Main characters
Photoelectric sensor, automatic blow
Electronically interlocked with double stainless door
Stainless nozzles
Audio system
With Auto, Stop, Manual, Emergency Stop function keys
An Emergency Stop push button: will override the operating cycle to release the door locks immediately
Custom sizes are possible
Feature :
Applicable Number of People:1 person
Materials: All Full Set Stainless SUS304 or coated cold rolled steel
Number of Nozzle:12(Two Sides) Stainless Steel 304
Mouth Diameter of Nozzle:Φ30mm
Control panel:sus304 frame,LCD display, PLC control system
Speed of Air Flow at the Nozzle:>28m/s
Lock:Electronic Interlock,two door can't open at the same time.
Pre-Filter:600*350*10(mm),2PCs,synthetic fiber with aluminum
HEPA Filter:2PCs,600*600*100(mm),
FAN:2PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
LAMP:1PCs LED light,Power:1*7W.
Shower Time:0-99s adjustment
HEPA Filter Efficiency:H13,99.995%@0.38um.
Maximum Power Consumption:1.1KW
Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage
Specifications | FL1R115 | FL1R1401 | FL2R1402 | FL3R1403 | FL1800 | FL2100 |
L×W×H(mm) Air shower room size |
1150×1000×2050 | 1400×1000×2050 | 1400×1600×2050 | 1400×2000×2050 | 1800×2000×2050 | 2100×2000×2050 |
L×W×H(mm) The showing area size |
790×910× 1930 | 790×910× 1930 | 790×1530×1930 | 790×1910× 1930 | 1200×1910× 1930 | 1500×1910× 1930 |
HEPA filter nos | 610*610*100 mm 1 pc | 610*610*100 mm 2 pcs | 610*610*100 mm 2 pcs | 610*610*100 mm 4 pcs | 610*610*100 mm 4 pcs | 610*610*100 mm 4 pcs |
Nozzle number(pc) | 6 | 12 | 18 | 24 | 24 | 24 |
Efficiency | 99.99 % 0.3 um (H14) | |||||
Wind(m/s) | 20~28 | |||||
Power | 3phase 380V 50HZ( option:220V ,3 phase or 220 V 1phase etc ) | |||||
Power(KW) | 0.75 | 1.5 | 2 | 2.2 | 3 | 4.5 |
Suitable Numbers | 1~2 | 1~2 | 3 | 4 | many | many |
