Alpha Clean Air Technology Co.,Ltd

60hz Air Shower Tunnel

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Warranty: 1 Year Voltage: 380, 220v/ 50, 60hz,single Or 3phase
Type: Remote Control Door: High Speed PVC Roller Door
Dimension(l*w*h): Customized Product Name: Full-automatic Air Shower Tunnel
Application: Cleanroom Entrance Overal Material: Powder Coated Steel Or SUS
High Light:

60hz Air Shower Tunnel

,

380V Air Shower Tunnel

,

60hz Clean Room Entrance

Product Description

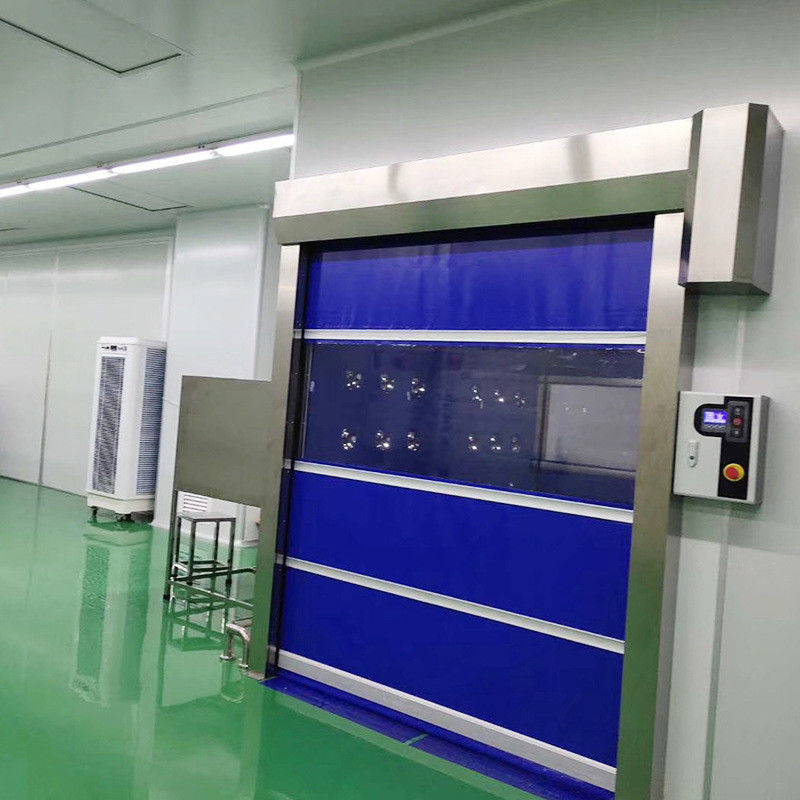

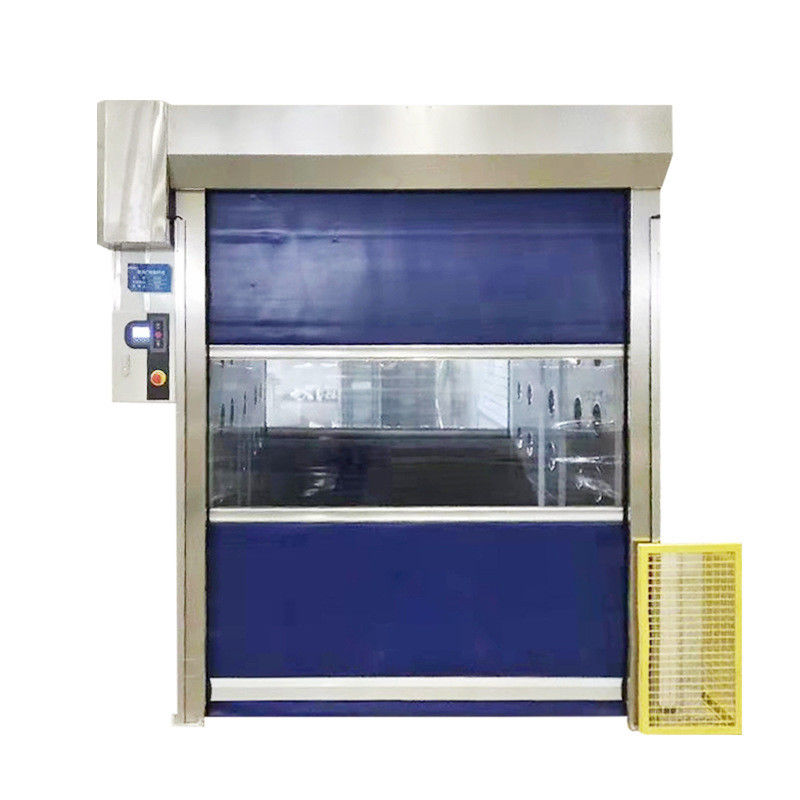

60hz Air Shower Tunnel



Clean Room Entrance Air Shower Tunnel With Fast Rolling Door Auto Open



The fast rolling door air shower tunnel filtered by the high efficiency filter is sprayed from the rotatable nozzle from all directions to the person,



effectively removing the dust particles efficiently and quickly.



Action Procedure Of Rolling Door Cargo Air Shower



1. People walk from the non-clean area to the outdoor door of the air shower room



2. When reaching the induction zone, the door opens automatically.



3. When a person enters the air shower room, the door is closed automatically in a preset period.



4. At this time, the person passes through the infrared sensor and the fan in the air shower room starts to blow.



5. After blowing at the set time, The inner door opens and the man walks out.



6. When a person walks out, the automatic door is closed according to the predetermined time.

    and return to standby status



Roller door cargo shower room open mode optional:

1. Wireless remote control

2. Microwave Automatic Induction Switch

3. Non-contact induction switch



Model HL2300-2 HL2300-3
Overall Size(mm) W2300*D2000*H2280 W2300*D3000*H2280
Internal Size(mm) W1500*D2000*H1980 W1500*D3000*H1980
Number Of Nozzles 24 36
Air Showering Time (S) 10s Factory Setting,10- 99s Adjustable
Material Of Main Body 1.2mm Power Coated Steel, Surface Electrostatic Spraying
Material Of Door SUS 201/ SUS 304 ,Mirror/ Sanded Stainless Steel Plate
HEPA Filter 610*610*69*4pcs,99.99%@0.3um 610*610*69*6pcs,99.99%@0.3um
Fan Power (W) 750*4 750*6
Light Power (W) 20*2 20*3
Voltage Supply 380v 50hz
