Alpha Clean Air Technology Co.,Ltd

SUS304 Air Shower Tunnel

Product Details:
Place of Origin: china
Brand Name: alphaclean
Certification: ce
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Polywood packing
Delivery Time: 10 days
Payment Terms: T/T, L/C
Supply Ability: 100sets
  • Detail Information
  • Product Description

Detail Information

Warranty: 1 Year Voltage: 380, 220v/ 50, 60hz,single Or 3phase
Type: Automatic Induction Access Door: Inside Open Sliding Door
Dimension(l*w*h): 1600*1300*2200 Product Name: Full-automatic Air Shower Tunnel
High Light:

SUS304 Air Shower Tunnel


SUS304 Cargo Air Shower


G1 Filter Air Shower Tunnel

Product Description

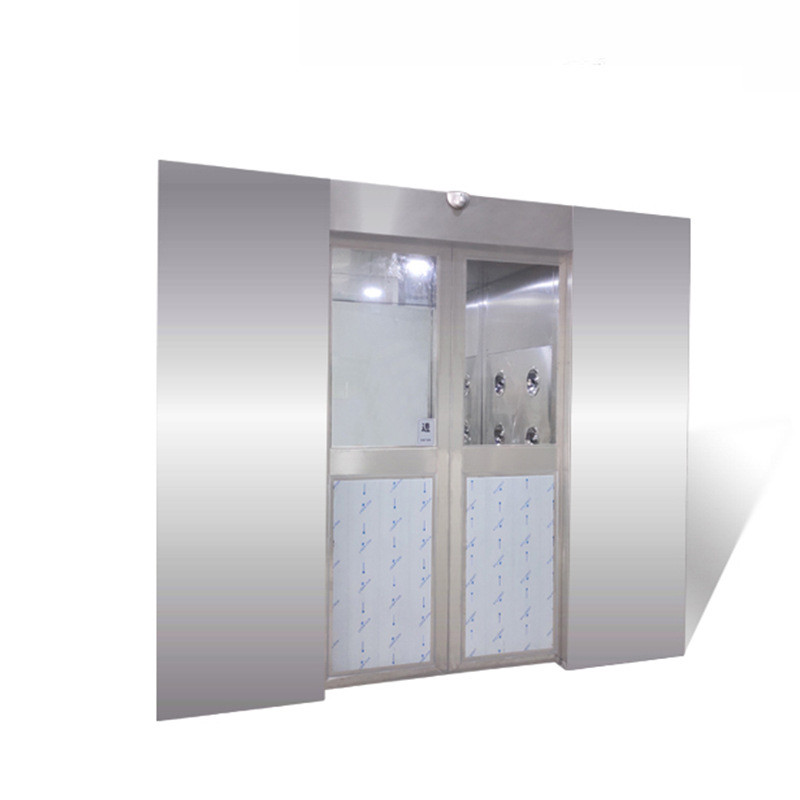

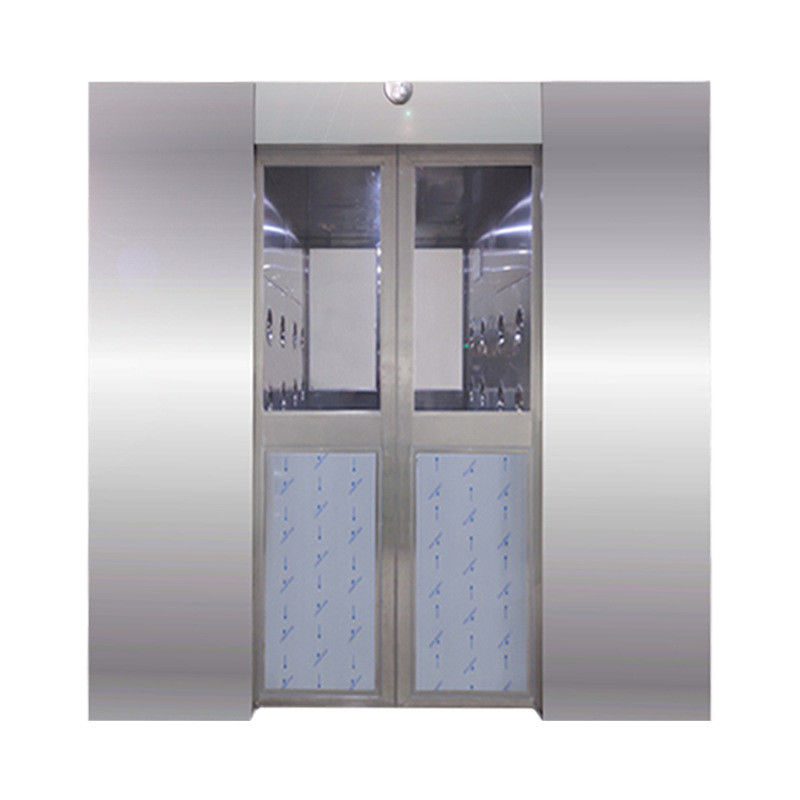

SUS304 Air Shower Tunnel


auto door access system clean room air showers for cargo trailers transmission

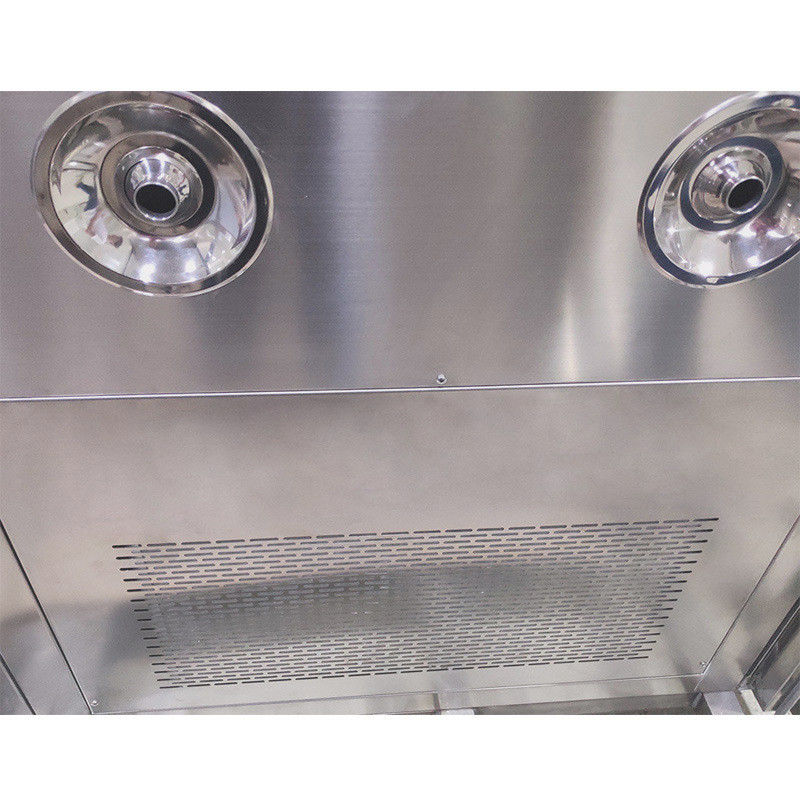

1. Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.

2. automatically showering with High quality infrared sensor;

2. Adopts single chip microcomputer control, LCD display working status;

3. Imported electronic interlock device, two doors can not opened at same time;

4. With G1 and HEPA filter to ensure the purification class;

5. Standard of the modular design, make field assembly faster and more convenient maintenance.

6. Functions and forms can be changed according to user needs and site conditions.


Open ways : sensor / switch / hand touch / card / fingerprint / face identification / auto-fast rolling door


Cargo air showers offer a convenient and automated solution to cleaning the surfaces of work in progress or finished goods, as well as provide a buffer area between two areas of different cleanliness. Modern cargo air showers can be categorized into four main types:

(1) Manual Door Cargo Air Showers- Less common; mostly used for smaller items

(2) Automatic SWING Door Cargo Air Showers - Suitable for small trailers and/or channels that are double use for cargo and personnel

(3) Automatic SLIDING Door Cargo Air Showers - Suitable for forklifts and other large vehicles, as well as channels with high amounts of traffic

(4) Assembly Line Cargo Air Showers - Suitable for cleaning products moving along the assembly line


Model PYM-2600
Overall dimension 2600 × 2140 × 2300 mm
Inside dimension 1200 × 2000 × 2180 mm
Nozzle numbers 24 pcs Φ 25mm
Showering time 10 -99 s adjustable (factory setting is 10s )
Casing material SUS304
Door SUS304 with half viewing glasses door
HEPA filter size 610 × 610 × 50 * 4pcs
Pre filter size 4 pcs
Efficiency 99.5% 0.5 um
Fan consumption 750 w × 4
Air velocity 20- 25 m/s
Ion wind stick 800mm *8sticks ( test paranoid voltage is <+- 35v static elimination time is < 5 M )
Anti-pinch light curtain 2 sets
light 6w 2 pcs
power 3phase,380v 50 hz
