Name: 300pa Pocket Air Filters
Brand: alphaclean
SKU: 24*24"
Price: 1.00 USD
Availability: InStock
Rating: 5 (170 reviews)

300pa Pocket Air Filters

Product Details:

Place of Origin:

china

Brand Name:

alphaclean

Model Number:

24*24"

Payment & Shipping Terms:

Minimum Order Quantity:

1 pc

Price:

negotiation

Packaging Details:

Polywood packing

Delivery Time:

10 days

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

10000pcs

Detail Information
Product Description

Detail Information
Size:	Custiomized	Color:	Yellow
Material Of Bag:	Non-woven, Synthetic Fiber	Product Name:	F5-F9 Pocket Air Filter
Frame:	Aluminum Or Galvanized	Application:	Industrial & Commercial Ventilation System, Electronic, Hospital, Power Plant
High Light:	300pa Pocket Air Filters , 450pa Pocket Air Filters , Synthetic Fiber F8 Air Filter

Product Description

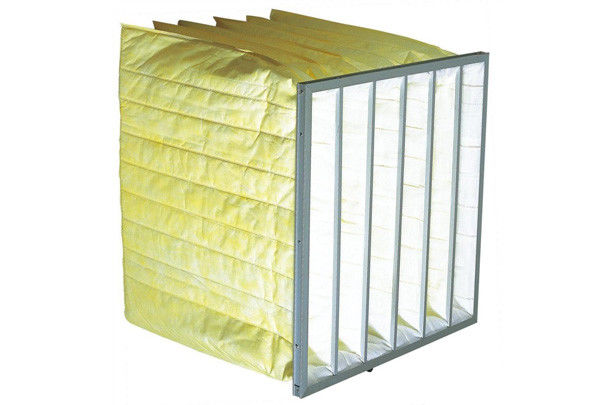

300pa Pocket Air Filters

F8 Synthetic Fiber Pocket Air Filter

Application: air conditioning systems

Type: pockets

Frame: Standard galvanised mild steel or aluminum

Media wide : synthetic fiber

EN779:2002 Efficiency : F5,F6,F7,F8,F9

Color: white,pink,green,yellow, deep yellow

Recommend final pressure drop: 300-450 pa

Temperature: 70C maximum in continuous service.

Optional: Alternative frame materials and size available on request.

Model	Outside Dimensions	Rated Air Flow	Pressure Drop (pa)			Media Area m2	Pockets
Model	Outside Dimensions	Rated Air Flow	F6	F7	F8	Media Area m2	Pockets
ZXD1524FB	24×24×15” 595×595×380mm	2550 / 3400(F8)	37	61	140	3.8	8
ZXD1520FB	20×24×15” 495×595×380mm	2100 / 2800(F8)	37	61	140	2.9	6
ZXD1512FB	12×24×15” 295×595×380mm	1275 / 1700(F8)	37	61	140	1.9	4
ZXD2124FB	24×24×21” 595×595×534mm	3400	45	75	95	6.5	10
ZXD2120FB	20×24×21” 495×595×534mm	2800	45	75	95	5.2	8
ZXD2112FB	12×24×21” 295×595×534mm	1700	45	75	95	3.2	5
ZXD2424FB	24×24×24” 595×595×600mm	3400	50	60	80	6	8
ZXD2420FB	20×24×24” 495×595×600mm	2800	50	60	80	4.6	6
ZXD2412FB	12×24×24” 295×595×600mm	1700	50	60	80	4	4
